Portable UV Marking Machine

UV 시리즈

Portable UV Marking Machine

홈 페이지 / 제품 / 레이저 마킹 머신 / UV 시리즈 / Portable UV Marking Machine

1. UV laser is high Laser beam quality, small laser spot, ultrafine marking resolution.

2. UV laser provide a small-size spot and a large depth of focus, marking by short wavelength laser interrupts molecular chains of materials, can greatly reduce the mechanical deformation and temperature distortion of materials.

CCD camera positioning

CCD camera positioning

Automatically located products

Precision marking.

Can mark multiple products at the same time

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

With high beam qualitythe ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

기술적인 매개변수

Laser source power

3W/5W/10W

Laser wavelength

355nm

Laser pulse width

3W<15ns@30khz, 5W<15ns@40khz, 10W<18ns@60khz

Laser frequency

20khz~150khz

Laser beam quality

1.2

Marking area

100x100mm, 150x150mm, 175X175mm, 200x200mm

Marking character

0.1 x 0.1 mm

Support computer

XP, WIN7, WIN8, WIN10

Control software

EZCAD

Control system

BJJCZ

Unit power

≤900W

Power supply

AC110V 60HZ or AC220V 50HZ

Cooling mode

Air cooling

Room temperature

-15 ~ 50 ℃

Gross weight

60kgs

Packing size

78x40x80cm


응용 산업

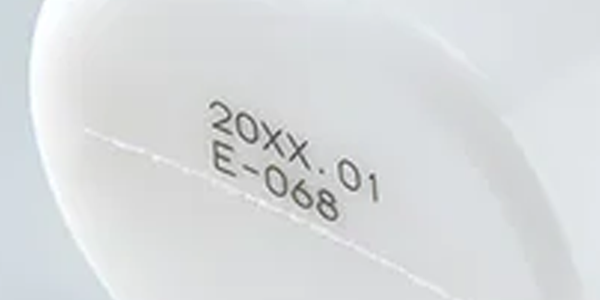

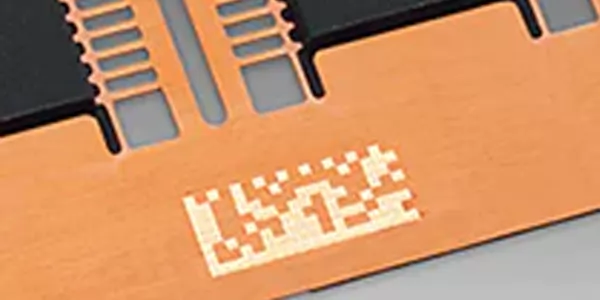

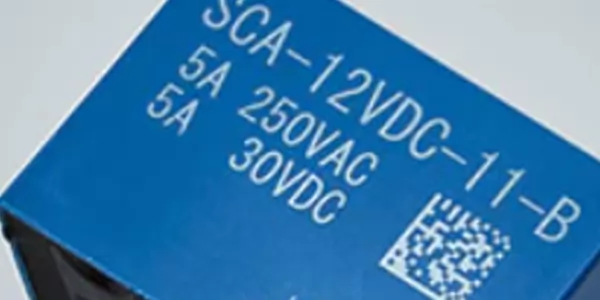

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhonecosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface metal surface coating, plastic buttons, electronic components, gifts, communication equipment, Building materials and other fields.


Portable UV Marking Machine

Portable UV Marking Machine

Portable UV Marking Machine
