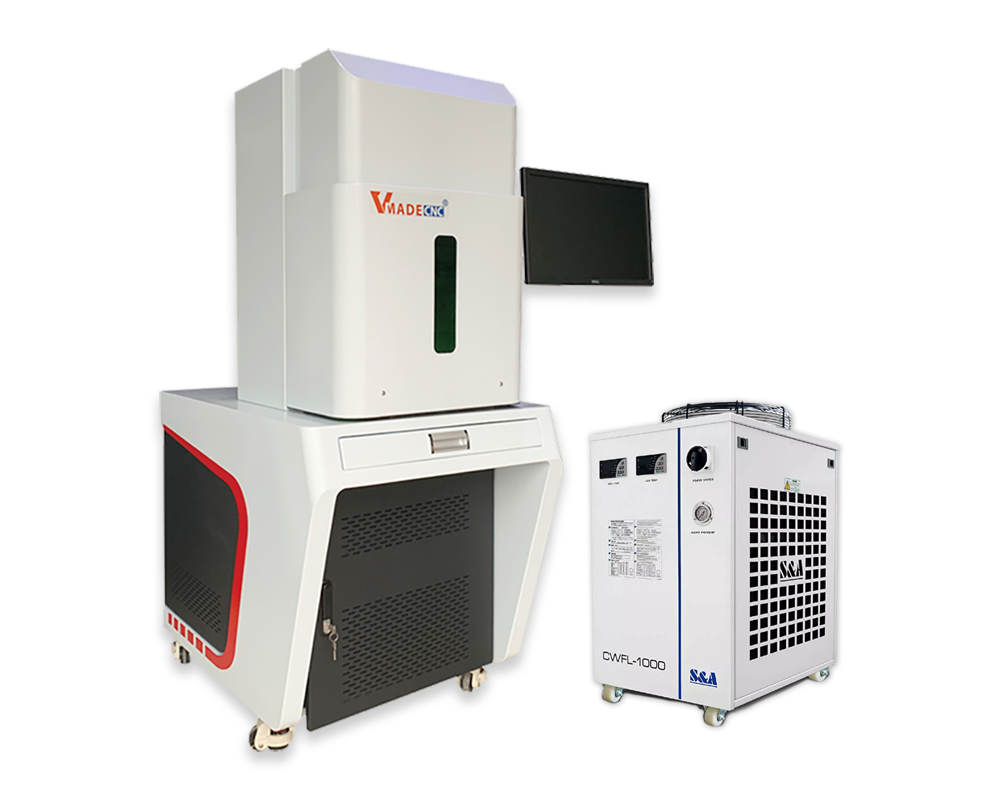

Enclosed UV Laser Marking Machine

UV 시리즈

Enclosed UV Laser Marking Machine

홈 페이지 / 제품 / 레이저 마킹 머신 / UV 시리즈 / Enclosed UV Laser Marking Machine

Ultraviolet laser marking machine belongs to a series of laser processing technology. It uses 355nm UV laser as the light source.

The machine uses third-order intracavity frequency doubling technology to compare with infrared laser (pulsed fiber laser), 355 ultraviolet focusing spot. Small, can greatly reduce the mechanical deformation of the material and has little influence on the processing heat, because it is mainly used for superfine marking, engraving, cutting and the like.

It is especially suitable for applications such as marking of food and pharmaceutical packaging materials, micropores, high-speed division of glass materials, and complex graphic cutting of wafer wafers.


1500mm*200mm

1500mm*200mm

We can customize design the length of conveyor belt, such as 800mm, 1000mm, 1200mm, 1500mm

CCD camera positioning

CCD camera positioning

Automatically located products

Precision marking.

Can mark multiple products at the same time

F-theta-lens

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Best quality digital Galvotech scan head

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

With high beam qualitythe ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone

Genuine BJJCZ card

Genuine BJJCZ card

Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

기술적인 매개변수

Laser source power3W/5W/10W
Laser wavelength355nm
Laser pulse width3W<15ns@30khz, 5W<15ns@40khz, 10W<18ns@60khz
Laser frequency20khz~150khz
Laser beam quality<1.2
Marking area100x100mm, 150x150mm, 175X175mm, 200x200mm
Marking character0.1 x 0.1 mm
Support computerXP, WIN7, WIN8, WIN10
Control softwareEZCAD
Control systemBJJCZ
Unit power≤900W
Power supplyAC110V 60HZ or AC220V 50HZ
Cooling modeAir cooling
Room temperature-15 ~ 50 ℃
Gross weight60kgs
Packing size78x40x80cm


응용 산업

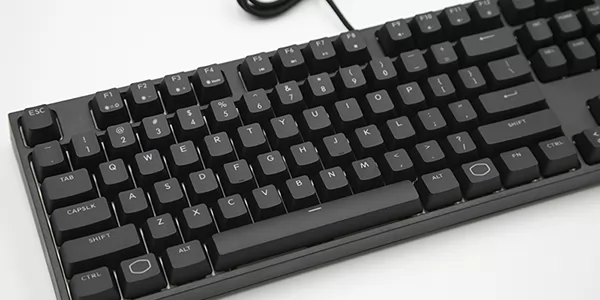

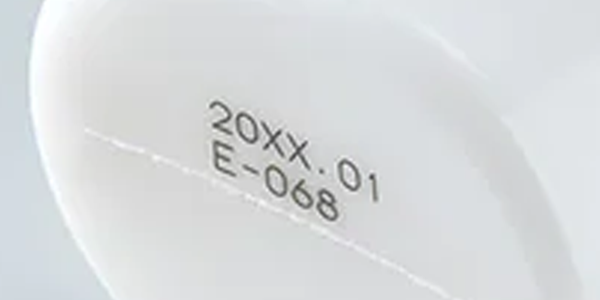

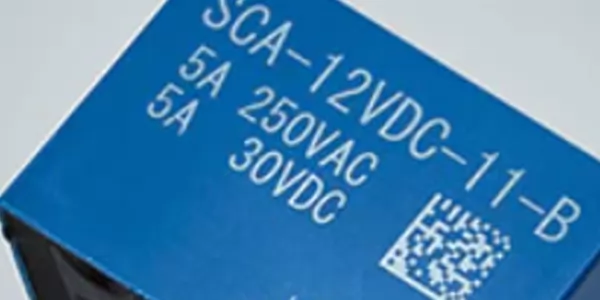

UV laser marking machine has been used in the high-end market of ultra-fine processing, marking the surface of iPhonecosmetics, medicine, food packaging; LCD liquid crystal glass, glass surface metal surface coating, plastic buttons, electronic components, gifts, communication equipment, Building materials and other fields.

Enclosed UV Laser Marking Machine

Enclosed UV Laser Marking Machine

Enclosed UV Laser Marking Machine

Enclosed UV Laser Marking Machine
