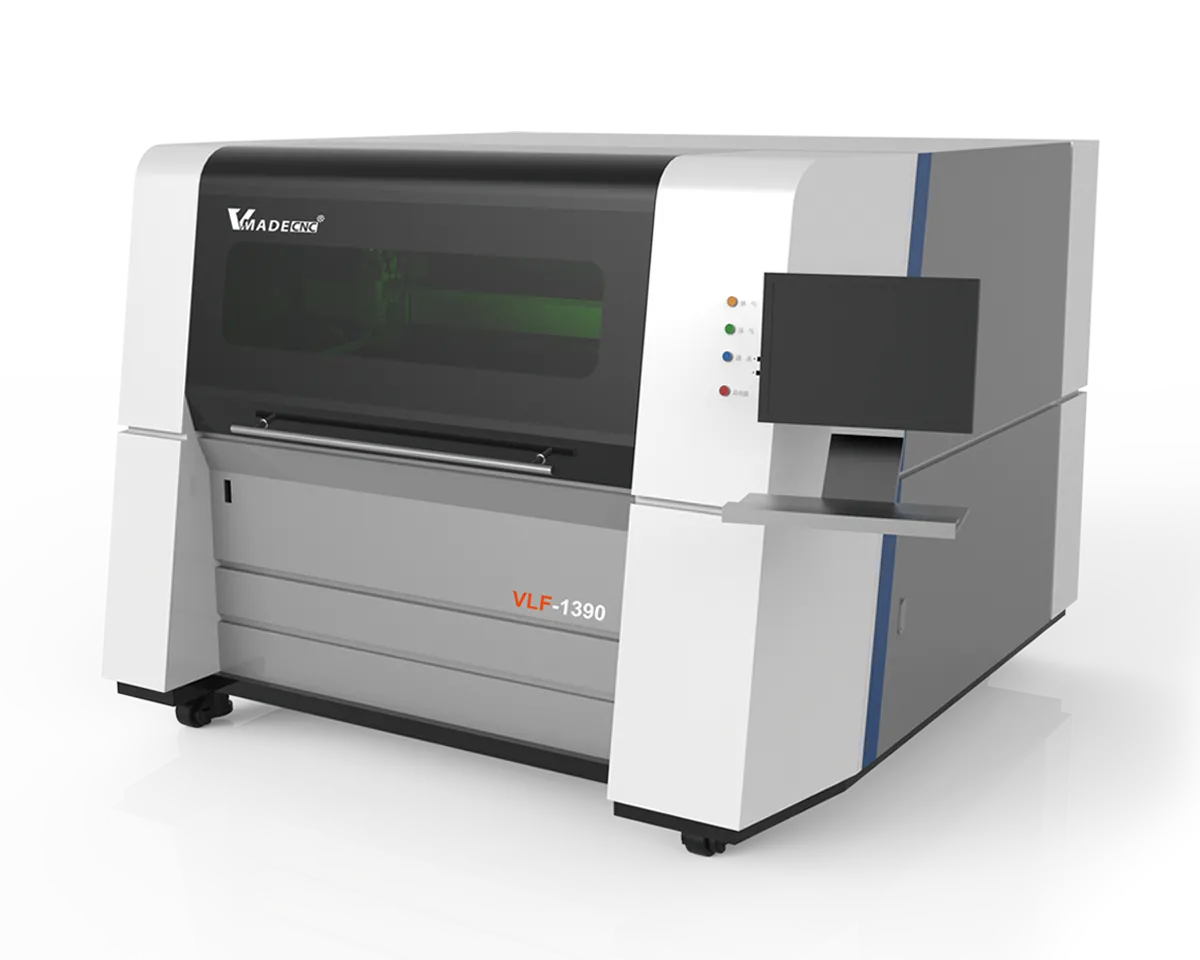

VLF1390 fiber laser cutting machine as one classic model, widely used in many common areas of our life, Used for cutting a variety of metal plates,

mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Transmission and Precision

Transmission and Precision

Vmade fiber laser cutting machine is equipped with Japanese Panasonic servo motor, imported TBI dual driver grinding ball screw for Y axis, imported TBI grinding ball screw for X axis and Hiwin guide rail, the repeat positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 0.5G. The working life is more than 10 years.

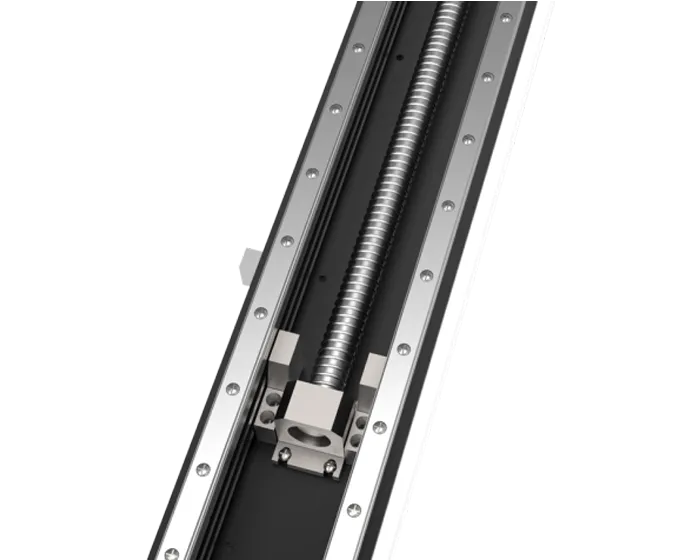

Dual Rail and Dual Driver Design

Dual Rail and Dual Driver Design

To prevent the cutting line deformation caused by the Y-axis screw bending, the Y-axis on both sides have been equipped two rails guide and double ball drive screw design to ensure the straightness and arc degree when with high-speed cutting is in operation.

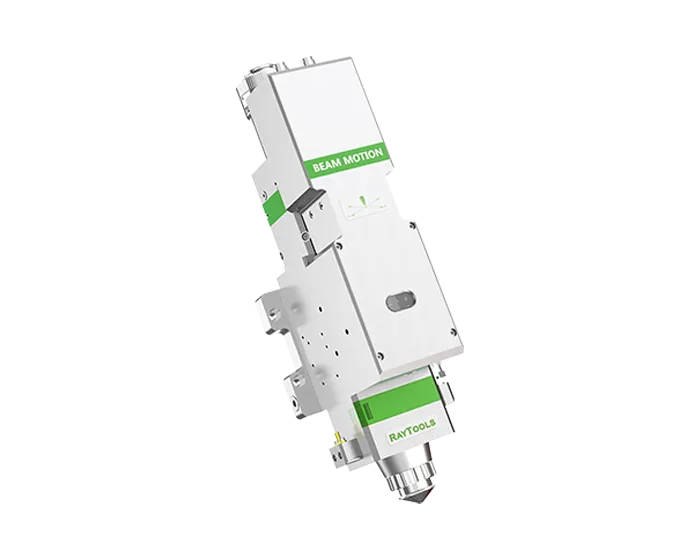

Without manual operation, it can focus automatically

Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

The Fourth Generation Aviation Aluminum Gantry

The Fourth Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

기술적인 매개변수

Machine modelVLF1390
Laser power500W 750W 1000W(Optional)
Working area1300mmx900mm
Repeat positioning accuracy±0.02mm
Maximum speed40m/min
Maximum acceleration0.5G
Transmission modeGrinding precision screw drive
Specified voltage and frequency220V/50Hz/60Hz/60A

응용 산업

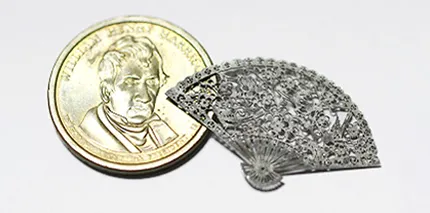

VLF1390 is specially designed for high precision cutting. It is widely used in machinery, microelectronics, glasses, electronics and other industries, which has high requirements on the cutting accuracy.
Professional for cutting various of thin metal sheet, stainless steel plate, galvanized sheet, electrolytic plate and other metal materials.
