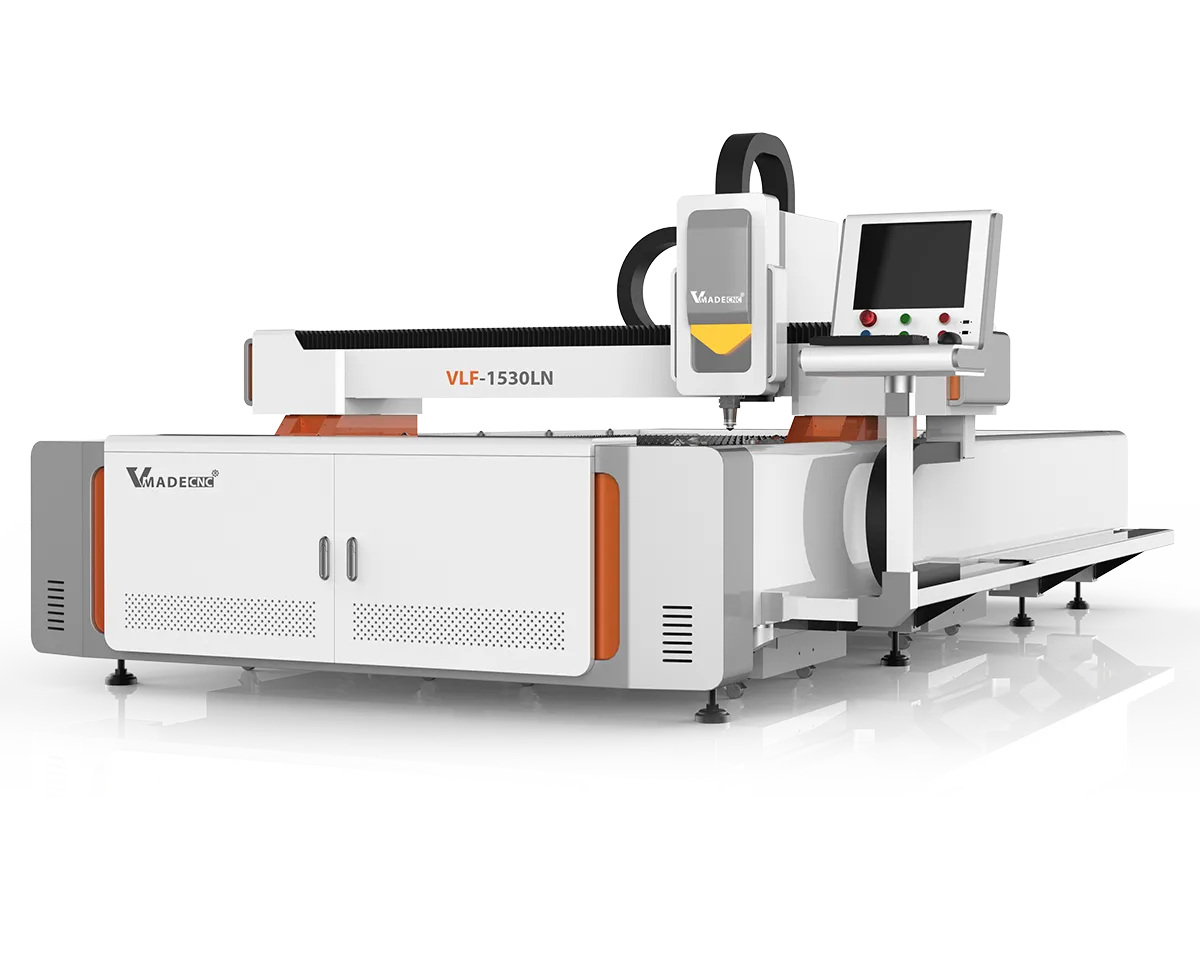

Dual Driver Gear Rack Fiber Laser Cutting Machine

LN Series

Dual Driver Gear Rack Fiber Laser Cutting Machine

홈 페이지 / 제품 / 개방형 레이저 절단기 / LN 시리즈 / Dual Driver Gear Rack Fiber Laser Cutting Machine

The fast speed mild steel cnc fiber laser cutting machine with 1500*3000mm working area, which consist of machine tool, motion parts, electrical equipment control parts, and other assist parts.

Via control system to operation three axis motion parts, so it can drive to fiber laser cutting head achieve a stable, accurate, and high speed moving; X and Y axis of aluminium stainless steel sheet cutting machine adopt by imported with original packaging high quality and precision HIWIN linear guide rail, working table adopt by square pipe to welding the overall machine, stress relief annealing treat, the max load-bearing of mesa could get 500 KG, it also has universal ball bearing, machine external set up peripheral clamping device, use full enclosed dust proof device, photoelectric sensor, and other precise positioning parts to ensure accuracy of the transmission.

The Fourth Generation Aviation Aluminum Gantry

The Fourth Generation Aviation Aluminum Gantry

It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.

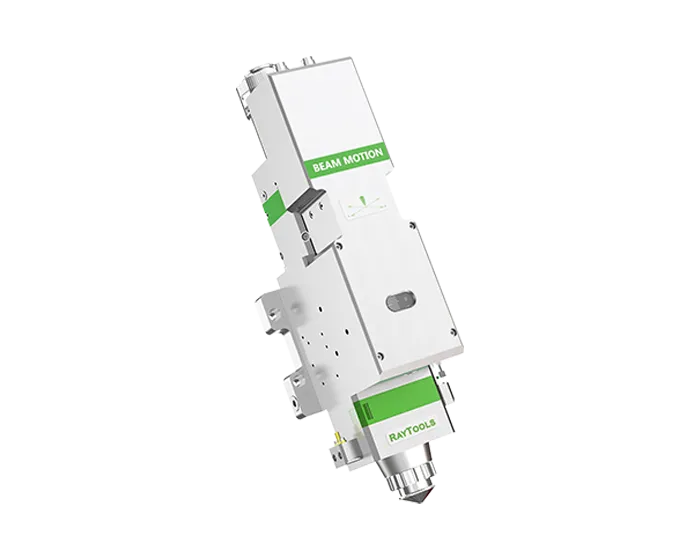

Without manual operation, it can focus automatically

Without manual operation, it can focus automatically

Without manual focusing

The software automatically adjusts the focusing lens to realize automatic perforating and cutting plates of different thickness. The speed of automatically adjusting focus lens is ten times of the manual adjusting.

Bigger adjustment range

Adjustment range -10 mm~ +10mm, precision 0.01mm, suitable for 0 ~ 20mm different types of plates.

Long service life

Collimator lens and focus lens both have water-cooling heat sink which reduces the temperature of the cutting head to improve the life of the cutting head.

Stainless Steel Protection Design

Stainless Steel Protection Design

The operating area adopts a 304 stainless steel design to prevent high temperature cutting sparks from damaging the machine's surface.

Transmission and Precision

Transmission and Precision

Vmade fiber laser cutting machine is equipped with Japanese Yaskawa motor, French Motoreducer and Taiwan APEX rack. The positioning accuracy of the machine tool can be 0.02mm and the cutting acceleration is 1G. The working life is up to 10 years.

기술적인 매개변수

Machine modelVLF3015LN
Laser power1000W 2000W 3000W(Optional)
Dimensions4440* 2500* 1860mm
Working area3000mm x 1500mm 4500mm*1500mm
Repeat positioning accuracy±0.02mm
Maximum speed80m/min
Max. acceleration1.0G
Specified voltage and frequency380V 50Hz/60Hz/60A

응용 산업

VLF1530LN fiber laser cutting machine as one classic model, widely used in many common areas of our life, such as processing of stainless steel kitchenware, storage cabinet and other cabinets, is closely related to people's daily life.

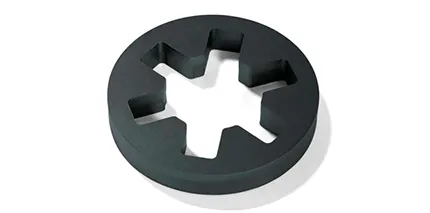

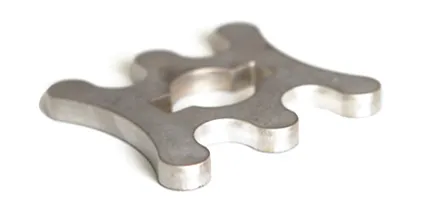

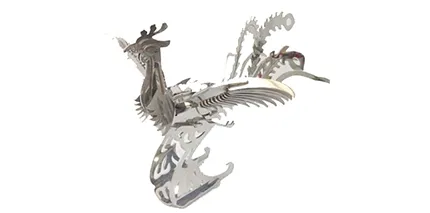

Used for cutting a variety of metal plates, pipes (add pipe cutting device), mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, various alloy plate, rare metal and other metal materials.

Dual Driver Gear Rack Fiber Laser Cutting Machine

Dual Driver Gear Rack Fiber Laser Cutting Machine

Dual Driver Gear Rack Fiber Laser Cutting Machine
