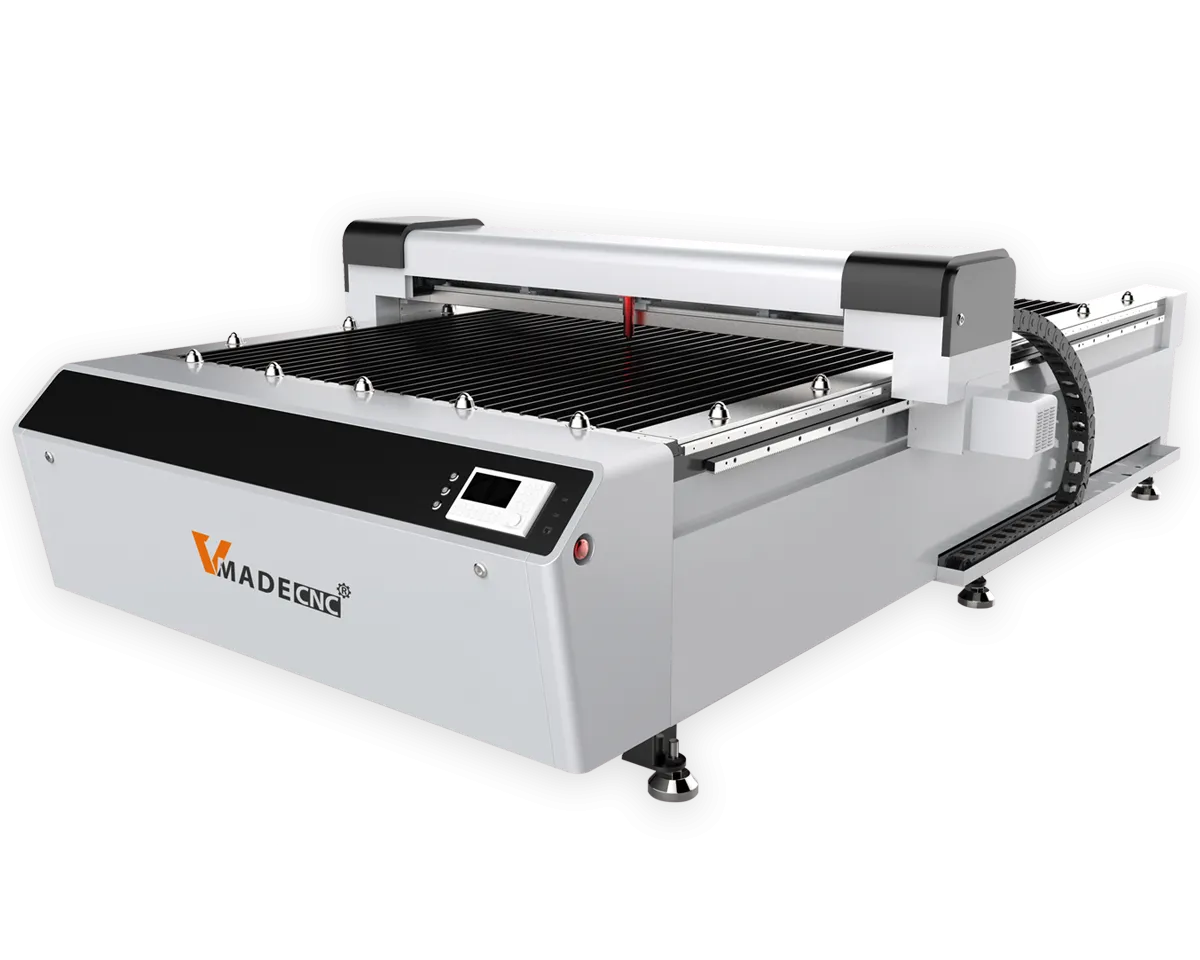

>> Open type working table achieves large format engraving and cutting area
>> dust helmet keeps linear guide rail clean and smooth, which extends machine lifespan
>> Guide rail grooves is one piece type and made by milling machine.Light patch won't be changed after long time using, which makes the whole machine more stable and cutting more precise
>> whole machine with stable mechanical design, ensure high stability, high speed and high prescison
>> honeycomb table and with thicker Znfe focus lens, more durable and smooth. Laser pathsystem use Mo mirror imported lens , which keeps the same power output at any site on working table

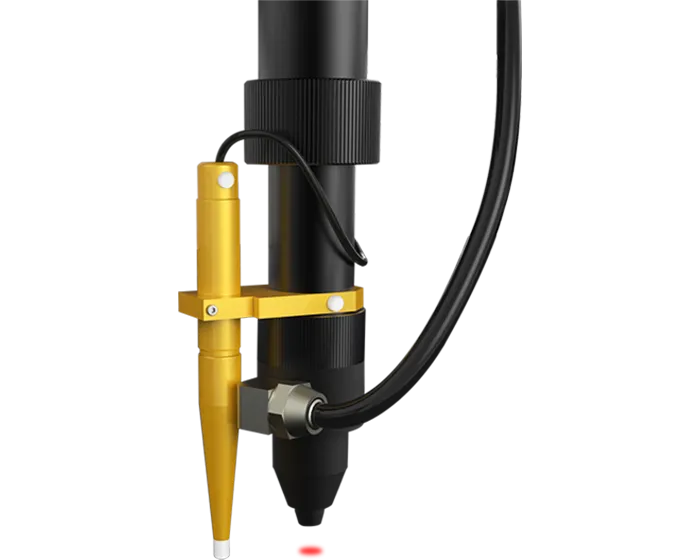

Automatic Focusing
Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.

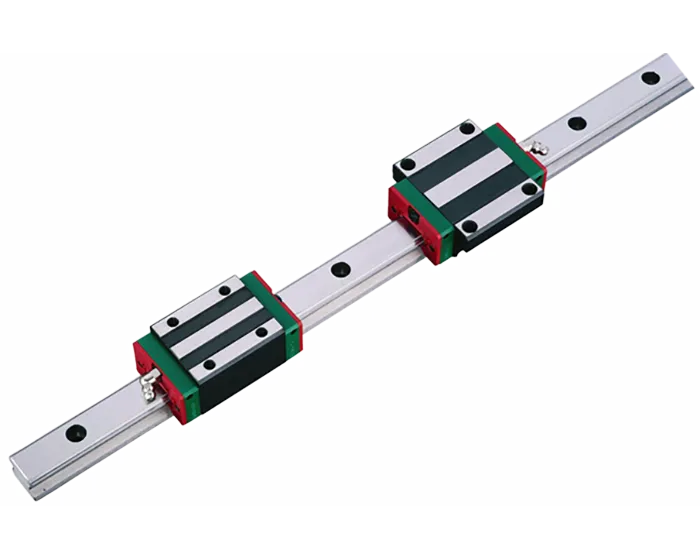

Taiwan Hiwin Linear Guide Rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

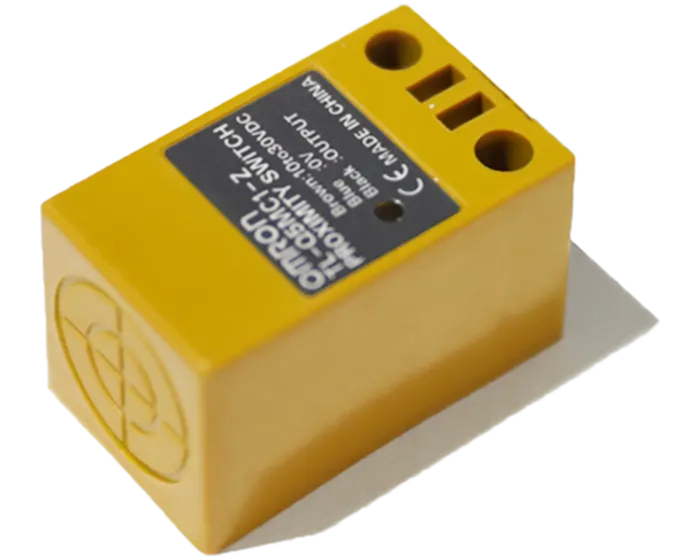

Japan OMRON
Electronic Component

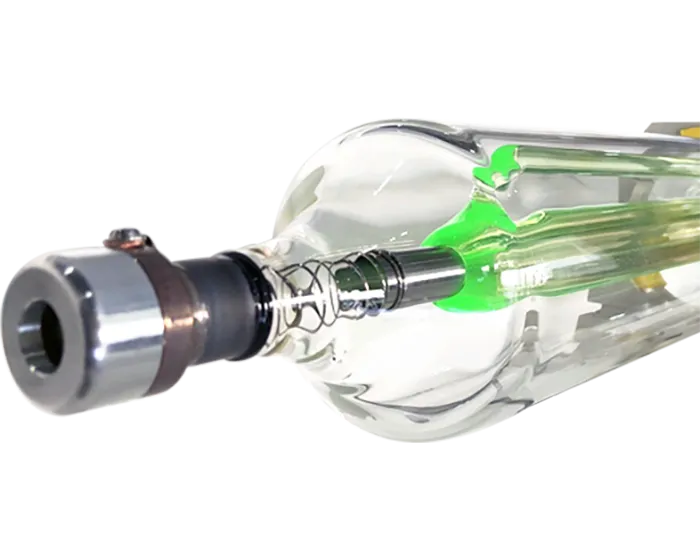

RECI Laser Tube
Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.

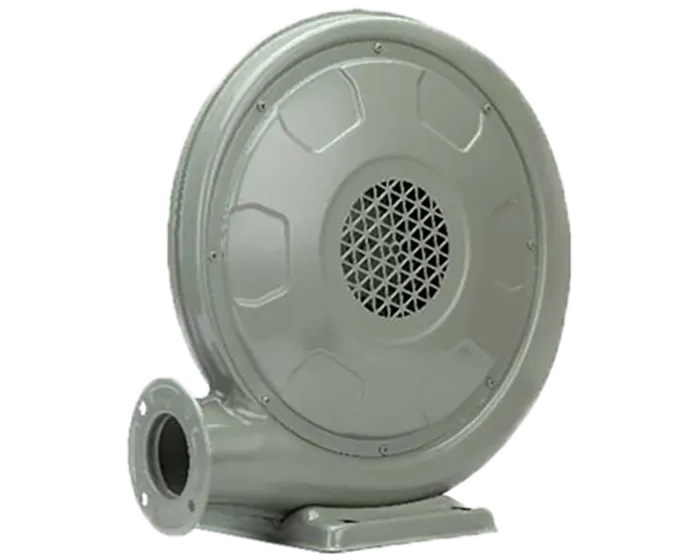

One Button Starting Fan
The fan can be started by one button. You can control the fan independently.
기술적인 매개변수
| Laser - Type | Sealed CO2 laser tube |
| Laser Power | 60W 80W 100W 130W 150W (Optional) |
| Cutting Area | 1300mm x2500mm |
| Whole Machine Size | 3000* 1600* 990mm |
| Cutting Speed | 0 -24000mm/min |
| Resetting Positioning Accuracy | ±0.1mm |
| Working Voltage | AC 110-220V ±10%,50 60Hz |
| Gross Power | <1,500W |
| Operating Temperature | 0-45℃ |
| Operating Humidity | 5-95% |
| Minimum Shaping Character | English 1x1mm |
| Graphic Format Supported | BMP, PLT, DST, DXP, and AI |
| Driving System | stepper |
| Cooling Mode | Water-cooling and protection system |
| Auxiliary Equipments | Exhaust-fans, air-exhaust pipe |
| Controlling Software | DSP control system |
| Compatible Software | CorelDraw AutoCAD Photoshop |
응용 산업
The machine can satisfy the demands of cutting and engraving large quantity of clothing fabrics, leather, wood, acrylic, paper and other industries.
