>> High conversion efficiency (over 60%) and low laser threshold
>> Simple structure, flexible medium working material, easy to use
>> The beam is of high quality (easily approaching the diffraction limit)
>> The laser output spectral lines are many and the tuning range is wide
>> Small volume, light weight, good heat dissipation effect, long service life

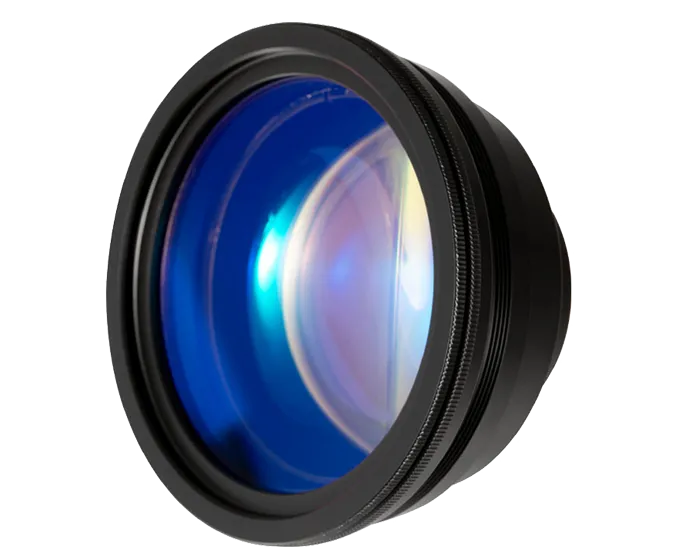

F-theta-lens
High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

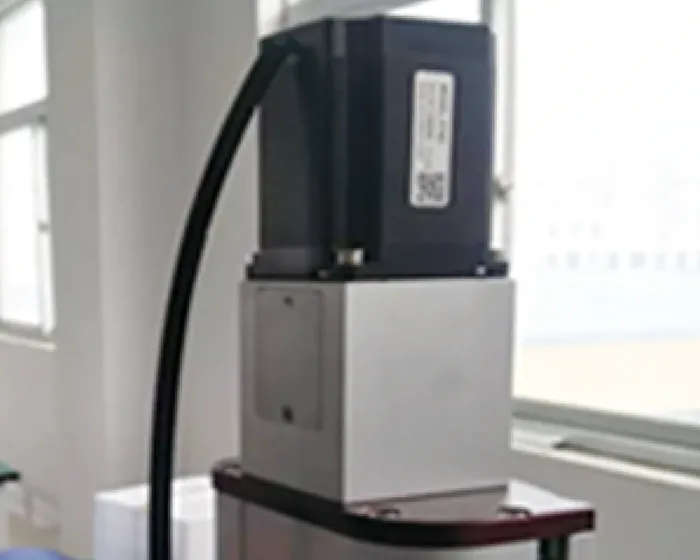

Motor Z axis lifting
No longer use manual rotation, we use switches to control the lift

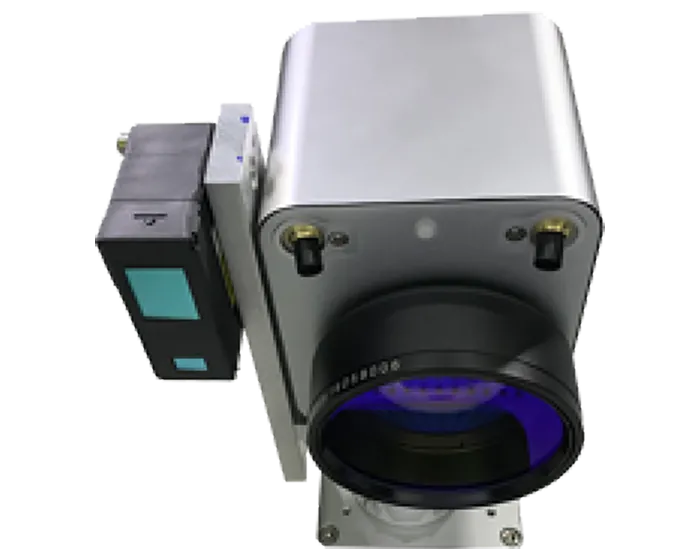

AUTO FOCUS
When we mark work-pieceswith different heightthe displacement transducer can Auto matically sense workpiece height.
The Galvo head will be up and down automatically no need movetheGalvohead by hand when marking workpieces with differ ent height.

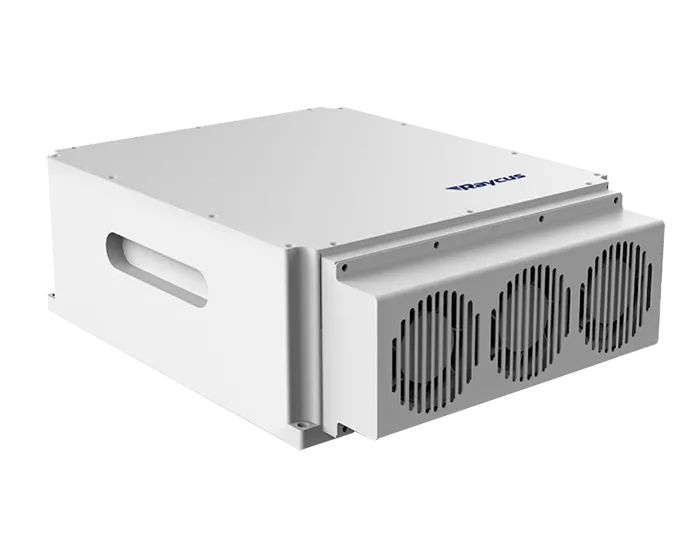

Raycus China best laser source
1.Highly stable laser output
2.High single-pulse energy
3.High marking efficiency
4.Short pulse setup time
5.High reliability

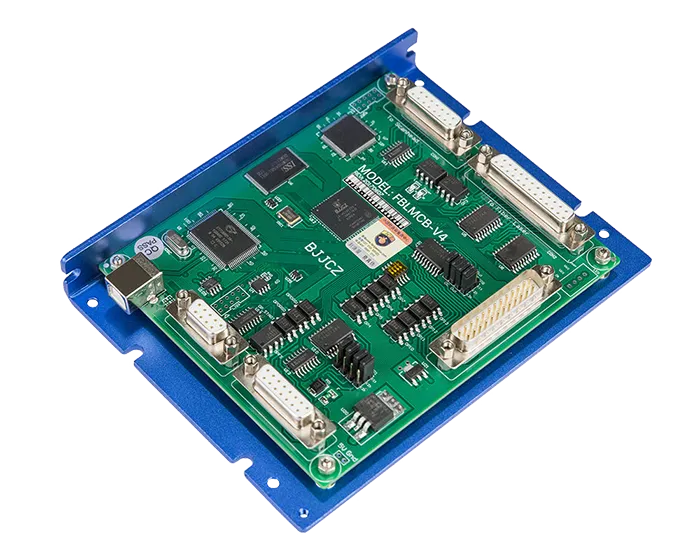

Genuine BJJCZ card
Software: EZCAD, control system WIN7, WIN8, WIN10 are ok

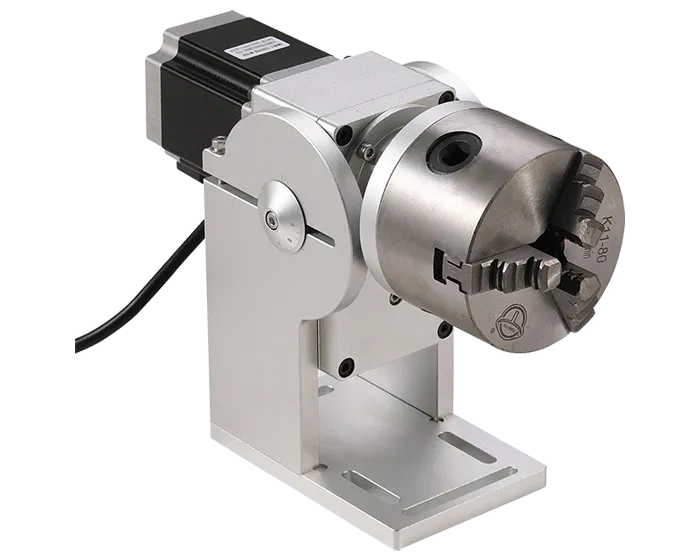

Rotary Device
Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.
기술적인 매개변수
| Model | VLF-E-20W 30W 50W 60W 80W 100W |
| Lens size | 75/110/150/175/220/300 mm optional |
| Laser source | RAYCUS/JPT/MAX/IPG |
| Galvo system | High quality Galvo scanning |
| Laser Power Control | 0-100% Software Controlling |
| Axial Speed | 8000mm/s |
| Repeat Location Accuracy | ± 0.02mm |
| Voltage | AC110V 60HZ or AC220V 50HZ ±10% |
| Cooling System | Air cooling |
| Min character | 0.1mm |
| Operate system | Windows XP/7/8/10 |
| Format Support | PLT/DXF/AI/SDT/BMP/JPG/JPEG |
| Software | Ezcad |
| Package size | Length*width*height :1020*550*1060mm Gross weight:120kg |
응용 산업

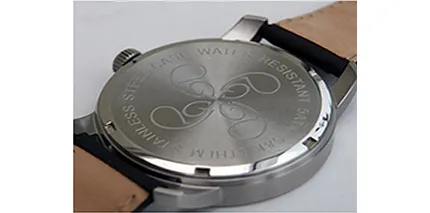

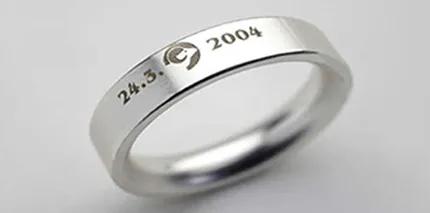

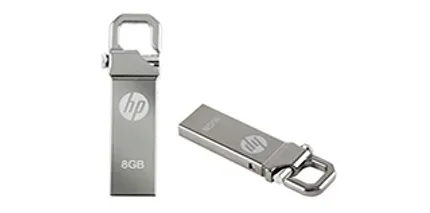

Suitable for Gold, Silver, Diamond, Sanitary Equipments, Foods Packing, Tobacco Label, Beer label, Drink Label, Medicine Packing, Medical Equipments, Glasses and Clock, Auto Parts, Plastic&Paper Materials, The Electron, Hardwarewhich with high request for depth, smooth, accuracy such ashorologe, Mould, bitmap marking etc.
