DetailedInformation

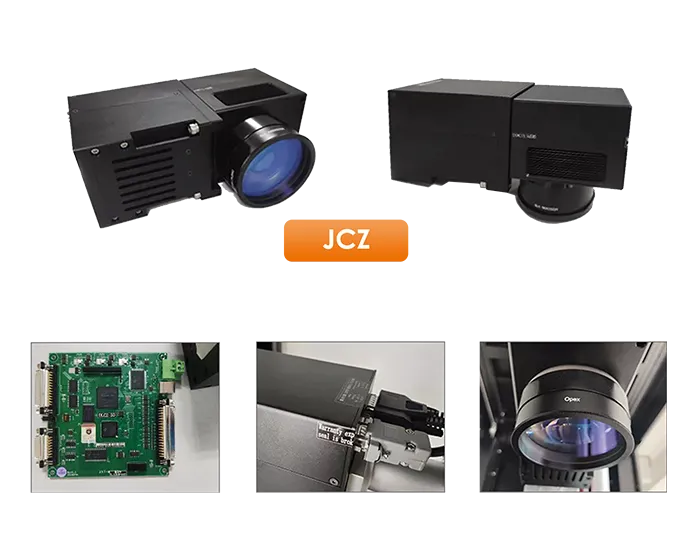

High speed motor, fast marking speed, precise focus control, ultra-low temperature drift, ultra long life

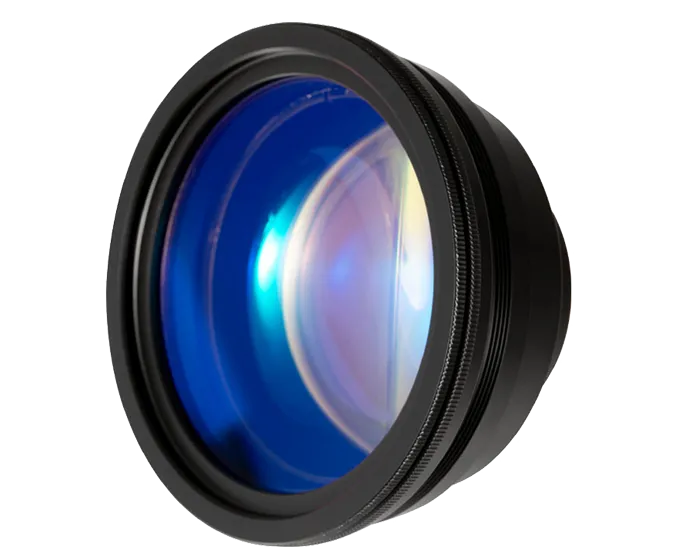

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Motorized Z axis

No longer use manual rotation, we use switches to control the lift

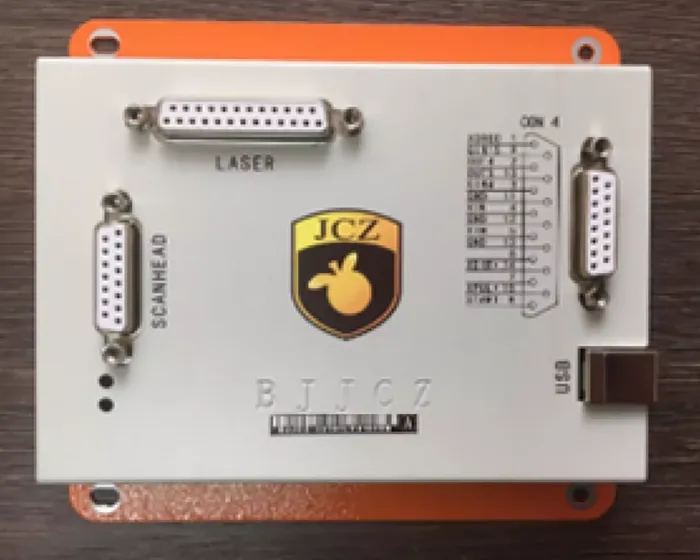

Genuine EZ CAD controller

Each piece has a sole serial No. to check to avoid fake.

Newest version, more stable

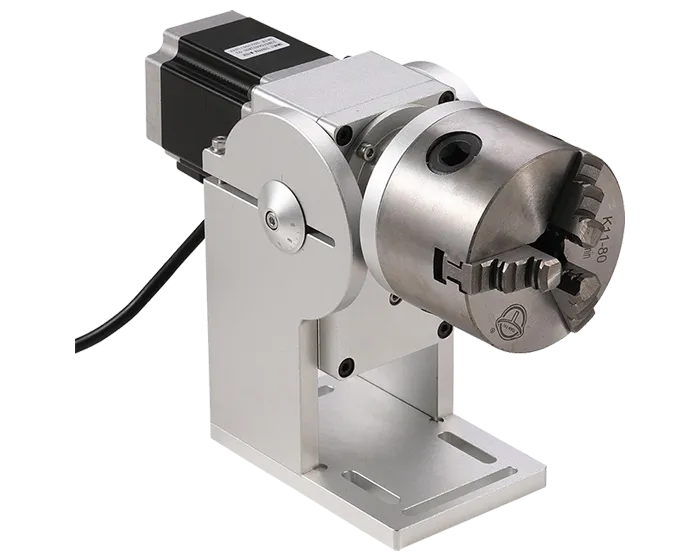

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

기술적인 매개변수

Product Name	2.5D Fiber Laser Marking Machine	Cooling Mode	Air cooling
Model No.	VLF-30 VLF -50 VLF-60 VLF-80 VLF-100 VLF-120	Max Marking Speed	7000mm/s
Laser Source	Raycus JPT IPG	Mininum Line Width	0.015mm
Power	30W/50W 60W/80W 100W /120W	Mininum Character	0.2mm
Laser Wavelength	1064nm	Pulse Frequency	30KHz - 100KHz(Raycus) 1KHz - 4000KHz (JPT)
Marking Area	*7070mm, 110110mm,* *150150mm, 175175mm,* *200200mm, 220220mm,* *300300mm.**	Operation Environment	Working temperature: 0°-40°. Storage temperature: -10°-60°. Humidity: 30% - 85%.
Power Supply	AC110V/220V+10% 50HZ or 60HZ	Control Card	EZCAD3 from JCZ
Operation System	Win XP / 7 / 8 / 10 (64 bits)	Lifespan	80,000-100,000 hours

응용 산업

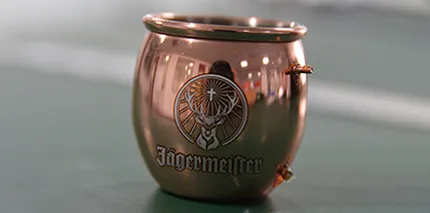

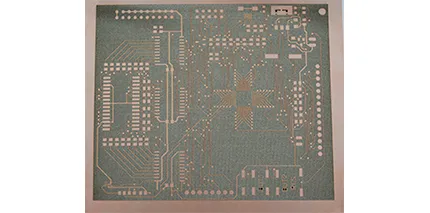

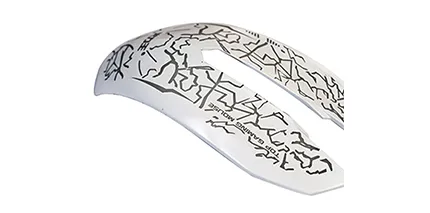

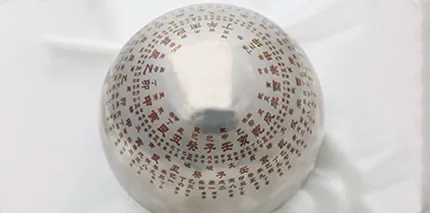

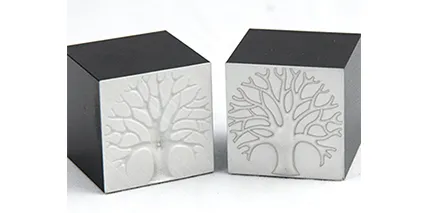

The machine can marking on all themetal materials and some of nonmetal materials.
