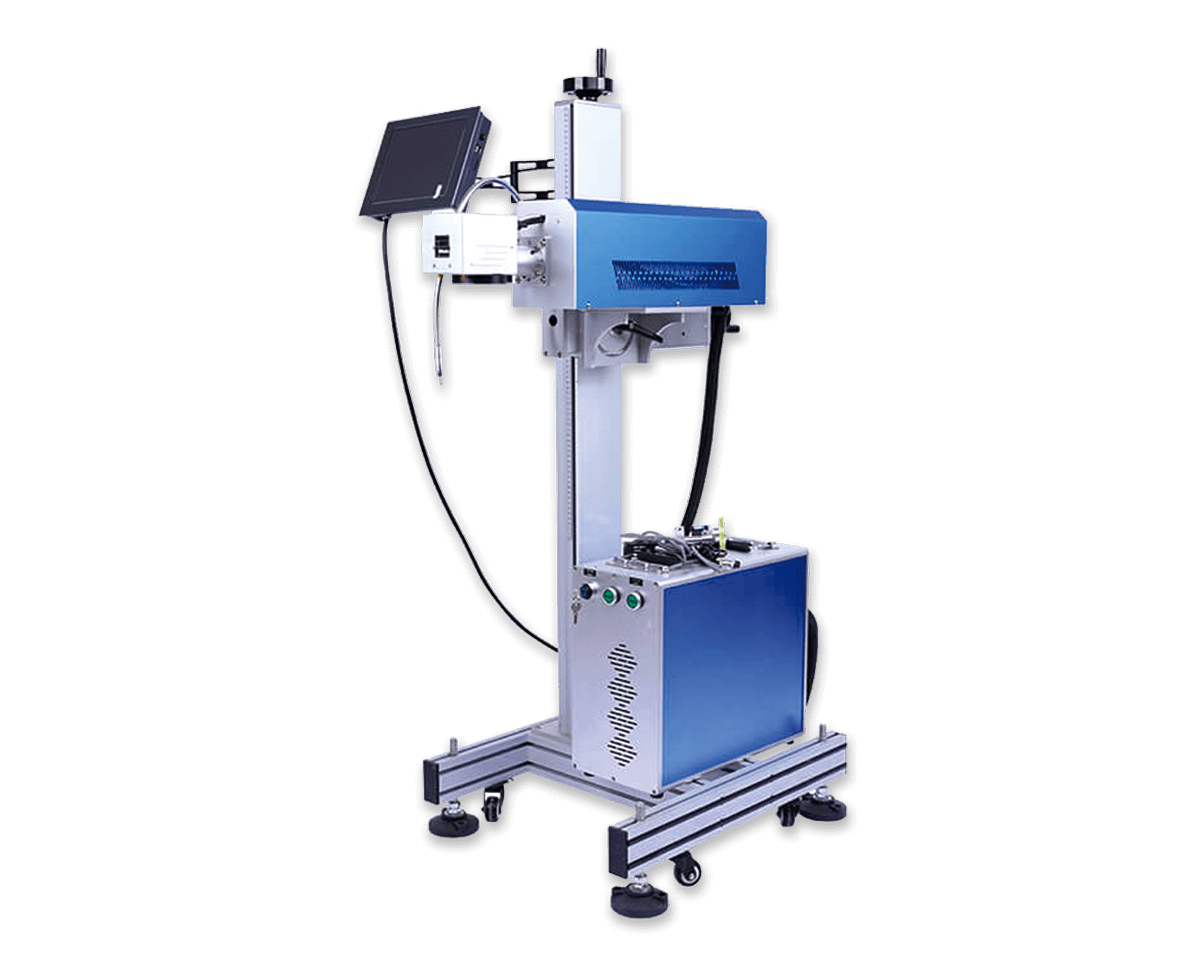

CO2 Flying Laser Marking Machine

CO2 시리즈

CO2 Flying Laser Marking Machine

바로 문의하기

홈 페이지 / 제품 / 레이저 마킹 머신 / CO2 시리즈 / CO2 Flying Laser Marking Machine

>> It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces.

>> It is widely used in various industries.

>> Single person can complete the whole operation.

Laser Module

DAVI/ ACCESS/ COHERENT as your reference.

20w/ 30w/ 55w laser power as your requirement.

Stable operation, lifespan of more than 100, 00 hours.

Galvo Scan Head

Newest digitagalvo scanner head

Aperturesize16mm

Linearity>99.90%

Repeatability<8urad

Longterm drift over 8 hours

<0.5urad

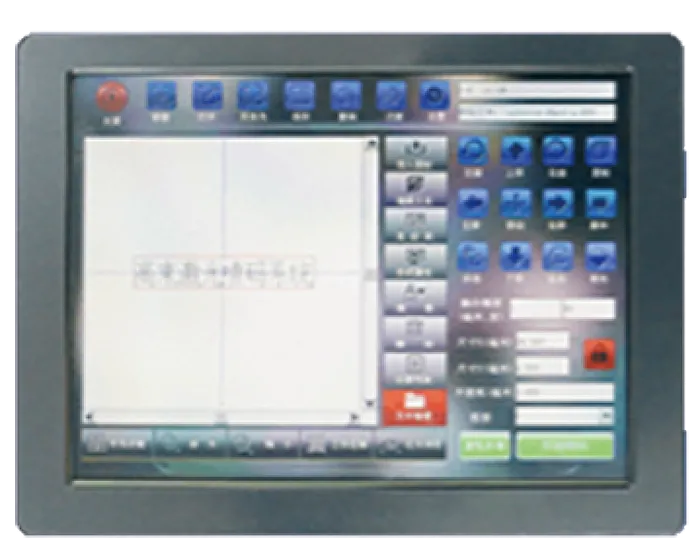

Earain System Touch Screen

Intelligent operation

High marking accuracy

easy to use

Interface supports multiple languages

F-theta-lens

High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

Best quality digital Galvotech scan head

Come with newest digital type scan head with double red dots build in more easy to get focus;Failed warning light ensure machine running correctly.

기술적인 매개변수

Product Name	CO2 Flying Laser Marking Machine VLF-CO2-10/30/60/100F
Display	10.4 Inch Touch Screen
Rated Power	10W/30W/60W/100W
Cooling Method	Forced Air Cooling
Suitable Materials	Flat, Round, Fugged
Processing Method	Online, Static
Effective Focal Length	175mm
Marking Range	Standard 100mm*10mm
Etching Speed	13m/s
Working Hours	20, 000 Hours
Wavelength	1064nm
Transfer Port	RS232, USB, Network Port
Structural Material	All Aluminium Structure
Size	149cm60cm57cm
Weight	43KG

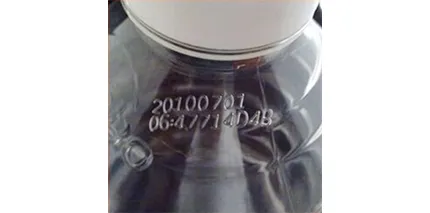

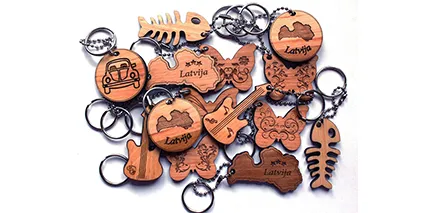

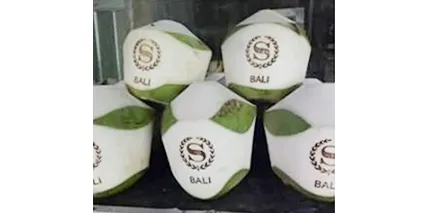

응용 산업

>> It is suitable for occasions with large workload, difficult feeding positioning, simplified procedures, diverse workpieces and complex curved surfaces.

>> It is widely used in various industries.

>> Single person can complete the whole operation.
