1.High reliability,long continuous operation time,clear and complete printing.
2.Supported by rich software.enable to collect and manufacture various labels,non-contact processing.
3.Ensure original precision of the surface of work piece to the max limit.
4.Suitable for engraving on various materials.long time preserve.simple installation and convenient.
5.The optical system is fully sealed,it can prevent the dust entering laser body and reduce the equipment failure rate.

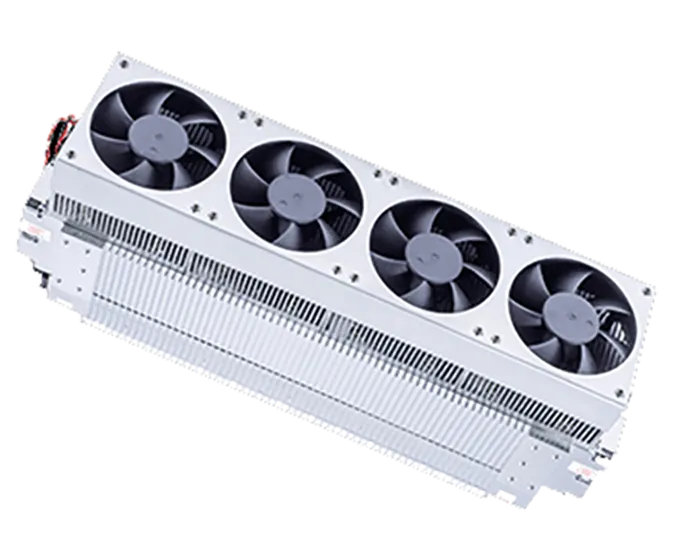

Laser Module
DAVI/ ACCESS/ COHERENT as your reference.
20w/ 30w/ 55w laser power as your requirement.
Stable operation, lifespan of more than 100, 00 hours.

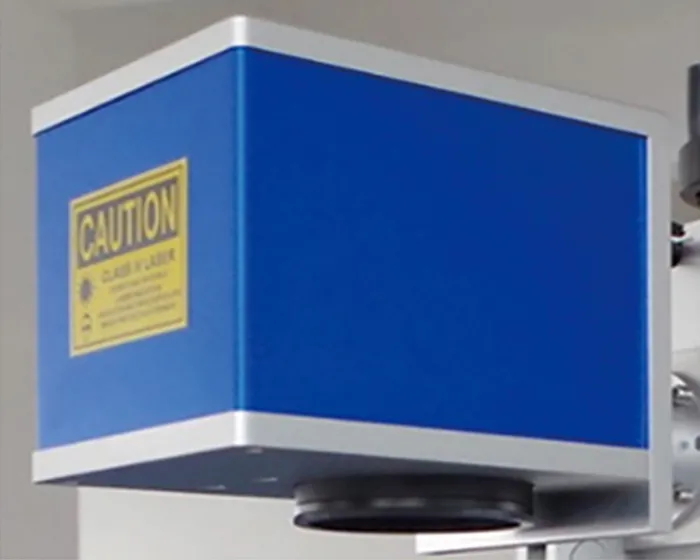

Galvo Scan Head
Newest digitagalvo scanner head
Aperturesize16mm
Linearity>99.90%
Repeatability<8urad
Longterm drift over 8 hours
<0.5urad
Control Program
The newest Genuine version
BJJCZcontrol board with
EZCAD control program
which is compatible with
win7/win8/win1032 and 64 bits

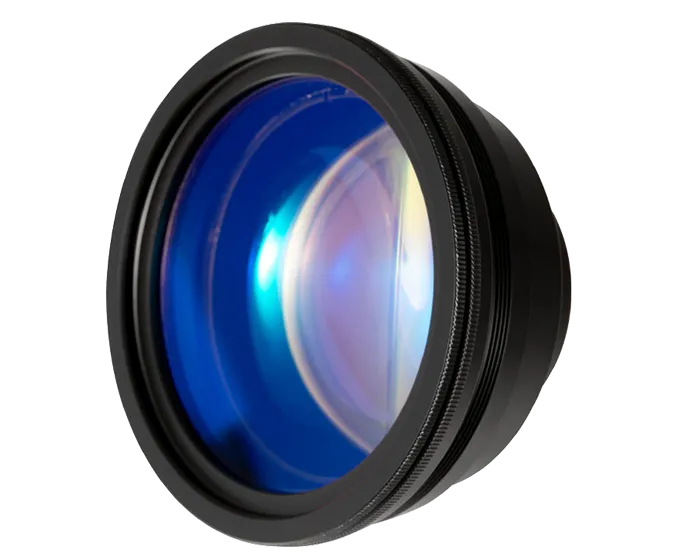

F-theta-lens
High quality wavelength tech optical lens, we have optional size:75*75mm, 110*110mm, 150*150mm, 175*175mm, 200*200mm, 250*250mm, 300*300mm etc(optional, but prices vary)you can choosse one suitable size according to your needs.

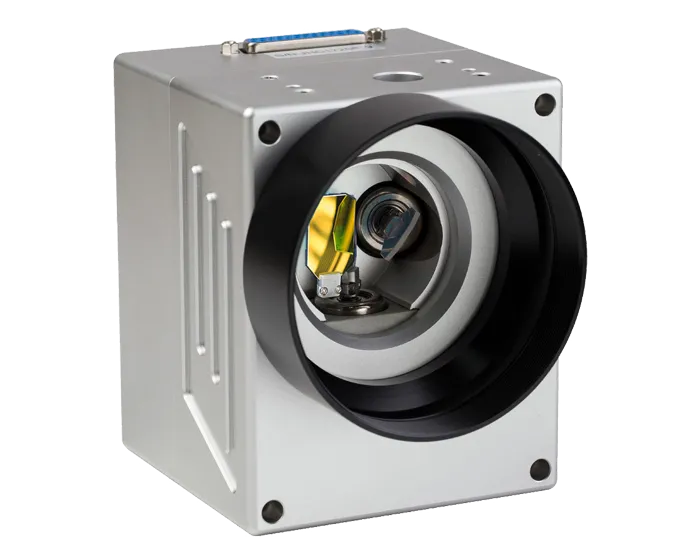

Best quality digital Galvotech scan head
Come with newest digital type scan head with double red dots build in more easy to get focus; Failed warning light ensure machine running correctly.
기술적인 매개변수
| Machine Type | VLF-CO2-10W 30W 60W 100W |
| Laser Output Power | 10W 30w 60W 100W |
| Power stability(from cold start)guaranteed | +/-5% |
| Laser beam quality | M2<1.2 |
| Beam combination spot size | 2.5mm |
| Beam expanding spot size | 15mm |
| Reflection beam sopt size | 16mm |
| Wavelength | 10.60um |
| Control system | EZCAD work with win7/8/10 |
| Focus method | Double red dots |
| Cooling way | Air cooling |
| Working Area | 70*70mm-300*300mm |
| Linearity | 99.90% |
| long term drift over 8 hours | <0.5urad |
| Repeated Accuracy | <=8urad |
| Minimum Line Width | 0.015mm |
| Power Supply | 220V/50HZ or 110V /60HZ |
| Package size | 109*46*78cm |
| Gross weight | 90kgs |
응용 산업
Suitable for wood, paper, leather, cloth, plexiglass, epoxy, acrylic, unsaturated polyester resin and other non-metal materials.
