UV 3D Laser Marking Machine

3D 시리즈

UV 3D Laser Marking Machine

홈 페이지 / 제품 / 레이저 마킹 머신 / 3D 시리즈 / UV 3D Laser Marking Machine

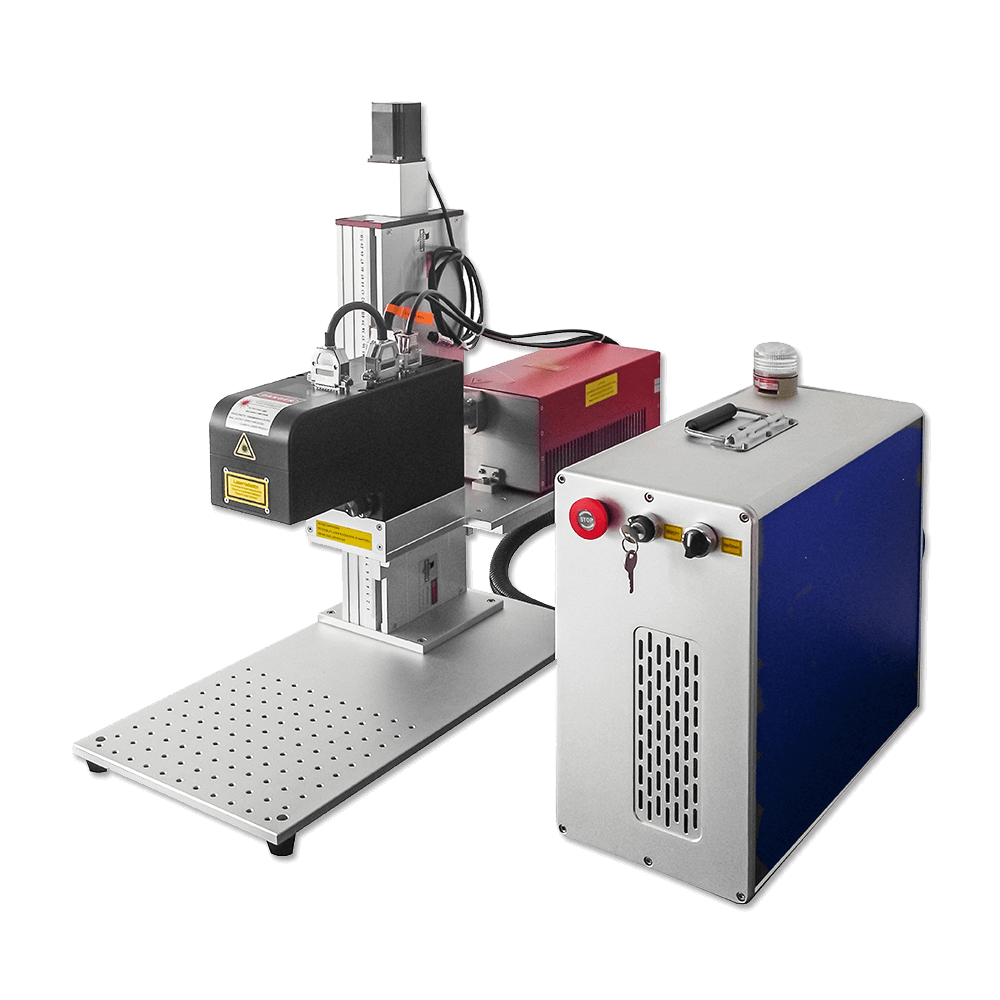

3D dynamic focus laser marking machine
In addition to complete plane marking (Plastic, glass, silicone, 3c, crystal, PCB). 3D laser can mark curved surfaces, mold
engraving and large area marking such like 300*300mm or 400*400mm.

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

UV Laser Source:JPT/HuaRay/Inngu 3W 5W 10W

With high beam qualitythe ultra-small focusing spot of 355nm ultraviolet light and processing heat affected zone

F-10 3D Galvanometer head

F-10 3D Galvanometer head

(1)Double driving Z axis dynamic focus module design,reponse frequency ≥100HZ@±10°.

(2)Designed based on output beam

characteristics of popular laser on the market, maximize the use of optical lens.

(3)Standard XY2-100 protocol, open interface,compatible with popular control card (EZCAD or other brand's control card) on the market.

(4)Support wavelength: 1064nm

Motorized Z axis

Motorized Z axis

No longer use manual rotation, we use switches to control the lift

Rotary Device

Rotary Device

Widely used for cylindrical objects, arc-shaped markings, easy to operate. With a rotating card slot on the headeasy installflexible adjustment.

기술적인 매개변수

Machine Model

3D- 3W 5W 10W 15W

Laser type

UV LASER

Laser source

JPT/INNGU/INNO/Huaray

Wavelength

1064nm

Control software

LenMark-3DS

Marking Area xyz

MAX support 600*600mm

Graphic format supported

Jpg,Bmp,DXF,PLT,AI,STL

Working voltage

AC220V 50HZ, AC110V 60HZ

Cooling type

Air cooling/Water cooling

Operating parameter

-5~50℃

G.W.

80KG

Package(L*W*H)

1020*480*830mm


응용 산업

1. Plastic parts, Glass

2. Gold plating, silver and other surface marking

3. oil plastic material surface marking, eg: samsung panel, melamine

4. Mark the surface of dehalogenated elemental materials, eg: IPHONEcharger, connection wire and other peripheral products

5. Daily necessities (beverage packaging, food packaging

6. Marking of cables and cables

7. Various pipe surface marks

8. Flexible materials and carbon fiber cutting

UV 3D Laser Marking Machine

UV 3D Laser Marking Machine

UV 3D Laser Marking Machine
