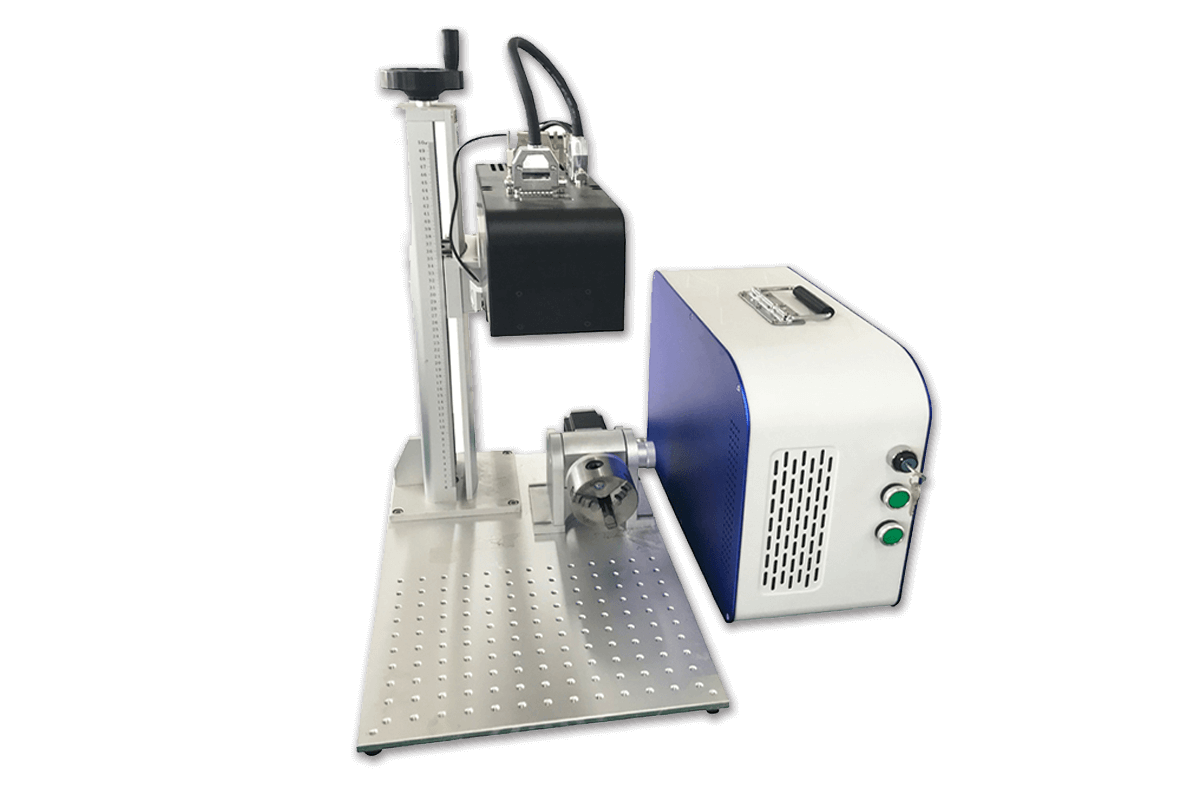

3D dynamic Fiber laser marking machine with Feeltek auto focus,
China famous brand Feeltek F10, F10 pro, F20, F20 pro Autofocus optional
-not noly marking on flat surface, but also apply to curved surface marking and the important is relief on metal

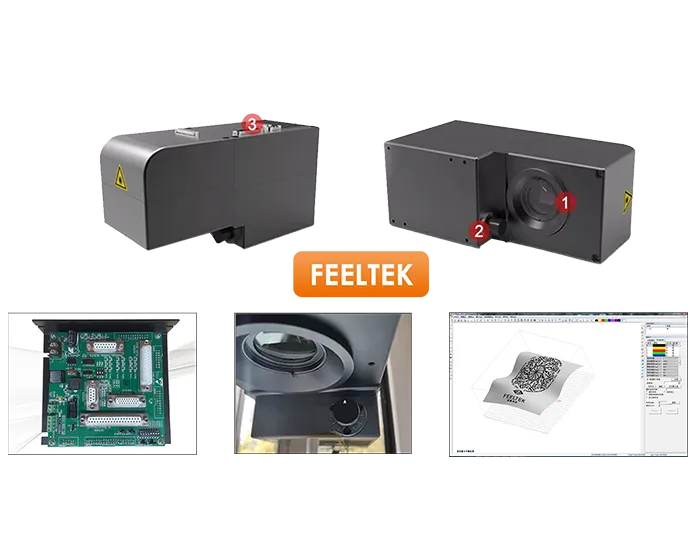

F-10 3D Galvanometer head
(1)Double driving Z axis dynamic focus module design,reponse frequency ≥100HZ@±10°.
(2)Designed based on output beam
characteristics of popular laser on the market, maximize the use of optical lens.
(3)Standard XY2-100 protocol, open interface,compatible with popular control card (EZCAD or other brand's control card) on the market.
(4)Support wavelength: 1064nm

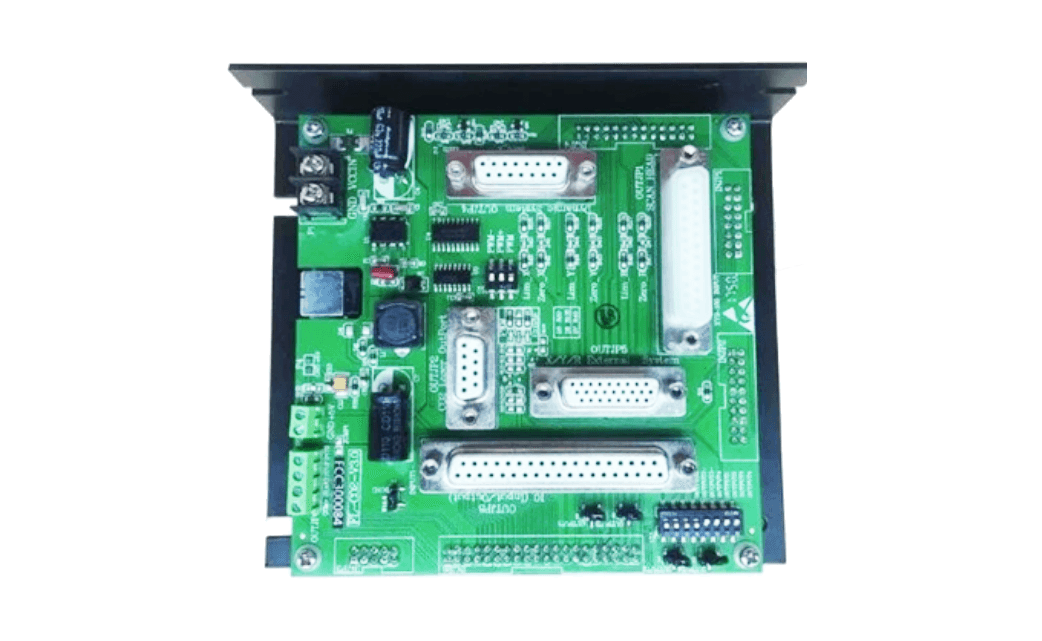

Multi-function control card
(1)It supports Win2000/XP/Win7/Win8/ Win10 32/64 bit system, Longer stable life.
(2)it is a control board specially designed for the FEELTEK dynamic focusing system system.

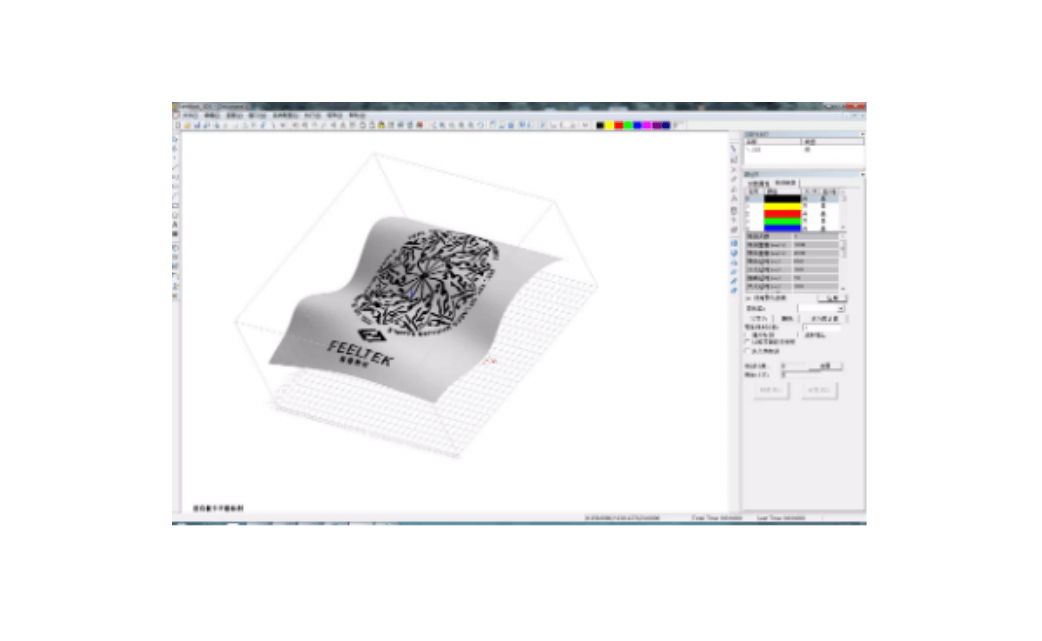

LenMark-3DS contronl program
(1)Support the import of kinds of vector files and bitmap files.
(2)Support multi correction methods: fast and high precision correction on high precision ideal platform and free adjustment of each position focal point under the non-ideal plane, and finally achieve full format focus consistency.
기술적인 매개변수
Model | VLF-20/30/50 3D | Cooling way | Air cooling |
Max Marking Speed | 7000m/s | Line Width | 0.015-0.5MM |
3D Galvo Head | Feeltek / JCZ / Sino Galvo. | Position accurancy | ≤0.001mm |
Minimun Character | 0.2MM | Wavelength | 1064nm |
Laser capacity | 30w 50w 100w 200w | Pulse Frequency | 30KHZ-100KHZ |
Laser module life | 100000 Hours | Total Power | ≤500W |
Marking area | 110*110*60mm, 150*150*60mm, 200*200*80mm, 300*300*80mm. | Operation enviroment | Working temperature: 0°-40° Storage temperature: -10°-60°. Humidity: 30% - 85%. |
Laser source | Raycus / JPT / IPG | Power supply | AC110V /220V +10% / 50HZ or 60HZ |
Package information | 95*53*99cm | Gross weight | 65KG |
응용 산업

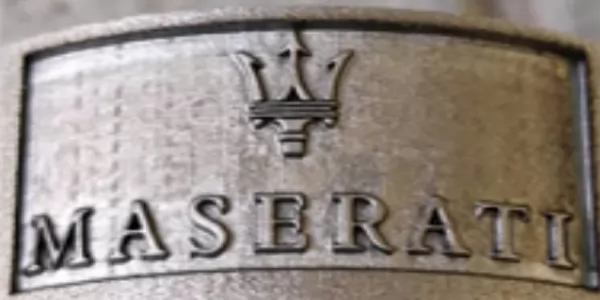

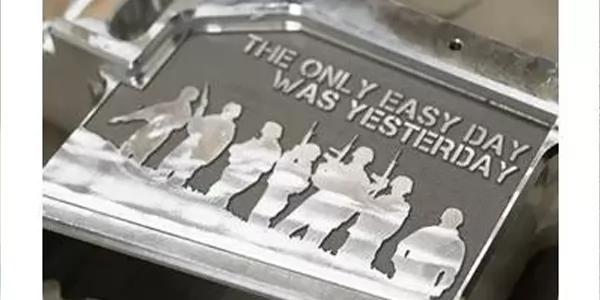

(1).3D dynamic focusing products can not only mark the plane, but also the curved surface and the undulating surface.

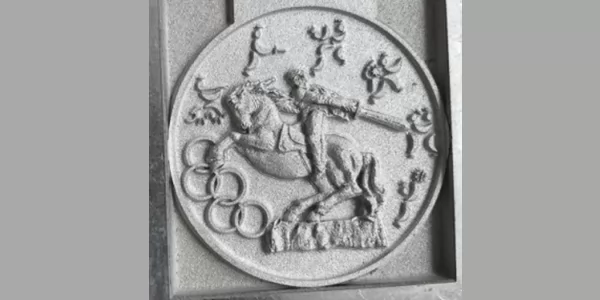

(2).His biggest advantage is that small mold carving can be done on the metal, and the small carved mold is very delicate.
(3).Compared with the ordinary marking machine system,the dynamic focusing system makes each marking point at the correct focal length,So the laser beam energy is stronger and more delicate,and the marking effect is better.
