6 Axis Robot Welding Machine

용접 시리즈

6 Axis Robot Welding Machine

홈 페이지 / 제품 / 레이저 용접/클리닝 기계 / 용접 시리즈 / 6 Axis Robot Welding Machine

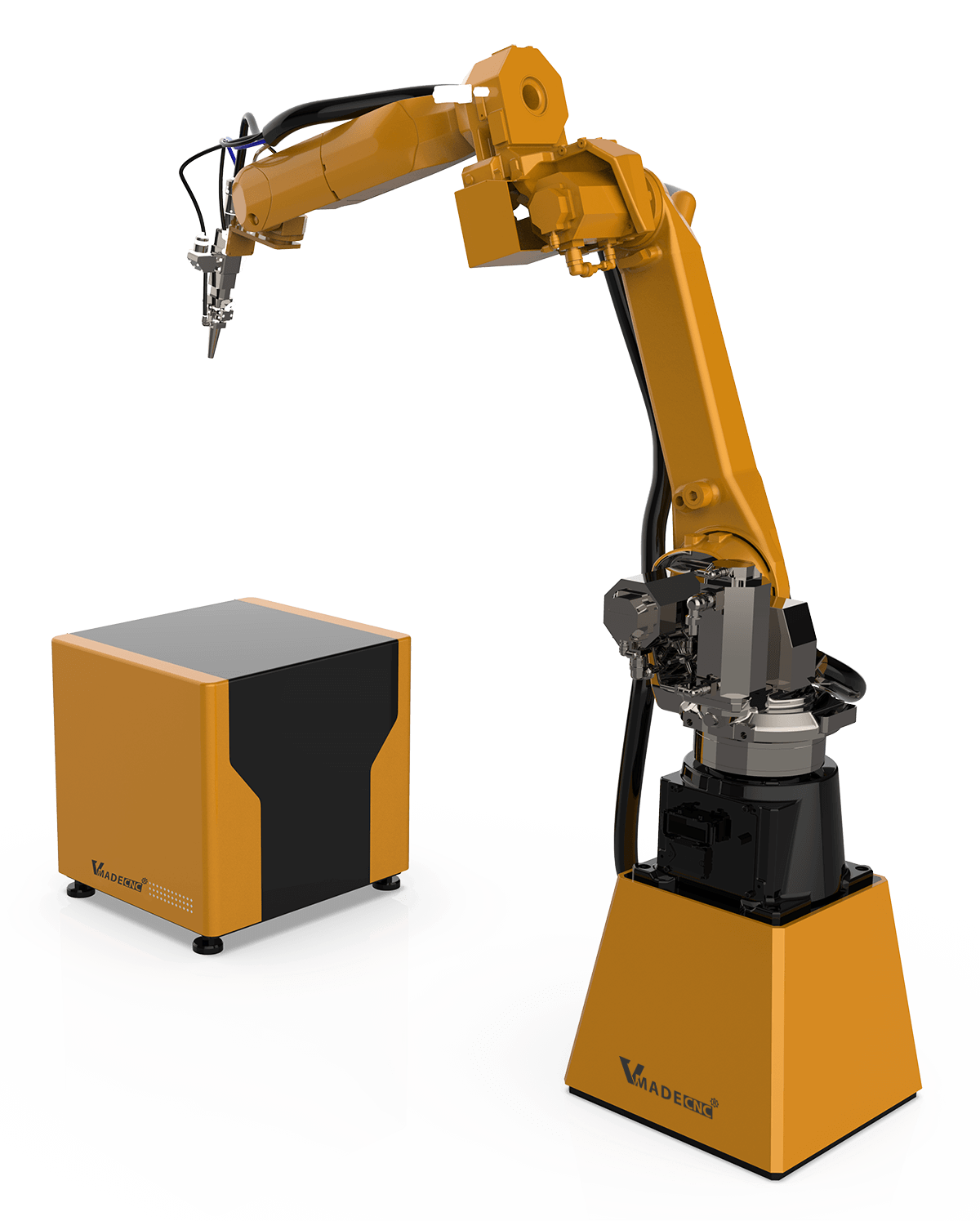

3D Welding Machine Introduction

Suitable for large-area space welding, intelligent robot operation, flexible and reliable, can be six-axis linkage, can be welded in any space, not limited to planar welding.

 The fixture can be customized according to production needs. Achieve double-station or multi-station welding operation, save product installation fixture time, greatly improve production efficiency

Raycus Laser Generator 1000W

Raycus Laser Generator 1000W

Raycus has an effcient and professional R&D and production team, which is the top quality in China.

The lasers have higher electro-optical conversion efficiency higher and more stable optical quality.

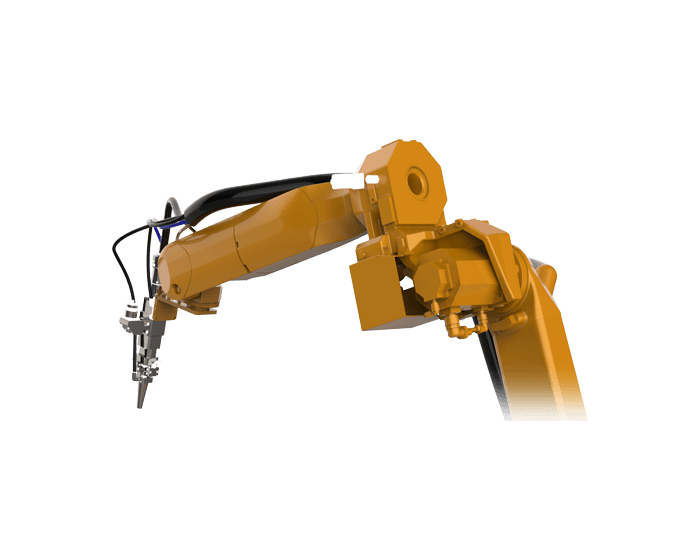

Fanuc robot

Fanuc robot

It uses the FANUC robot arms and FANUC operating system imported from Japan, making it convenient to use.

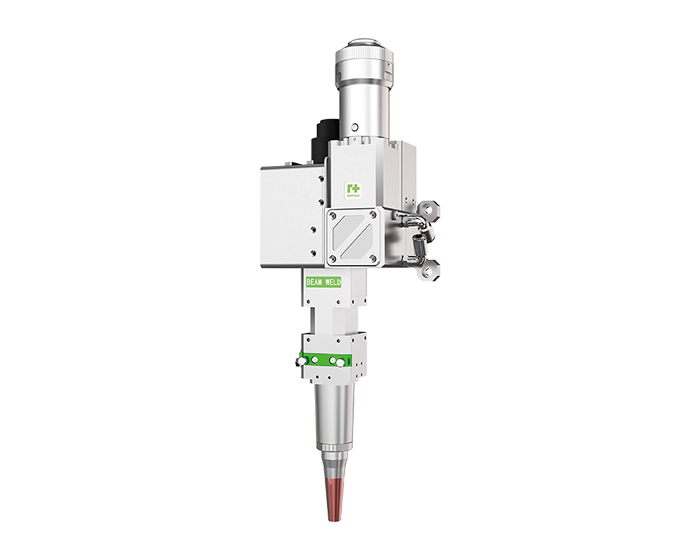

Wobble Laser Welding Head

Wobble Laser Welding Head

Wobble welding feature by galvo system; Various wobbling paths like continuous circle, continuous line, spot

weld circle, spot weld line, C type and S type.

Both internal control and external control mode.

기술적인 매개변수

Model

FANUC Robot M20iA

Control axis

6

Handling weight

20kg

X motion range

1811mm

Y motion range

3275mm

Repeat positioning accuracy

±0.03

Weight

250kg

Control System

R-30IB


응용 산업

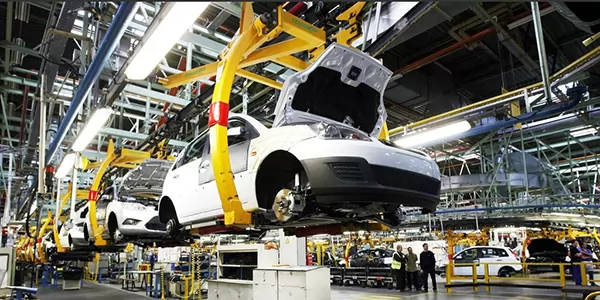

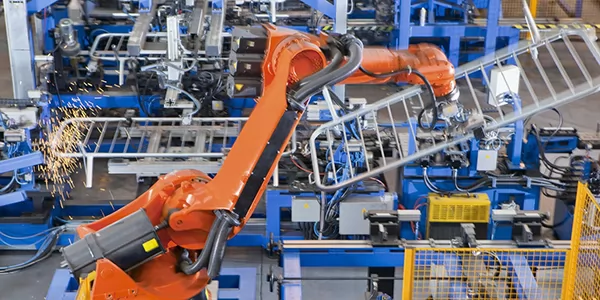

It is widely used in the production of 3D parts such as metal processing, machinery manufacturing and automobile parts manufacturing.

6 Axis Robot Welding Machine

6 Axis Robot Welding Machine

6 Axis Robot Welding Machine
