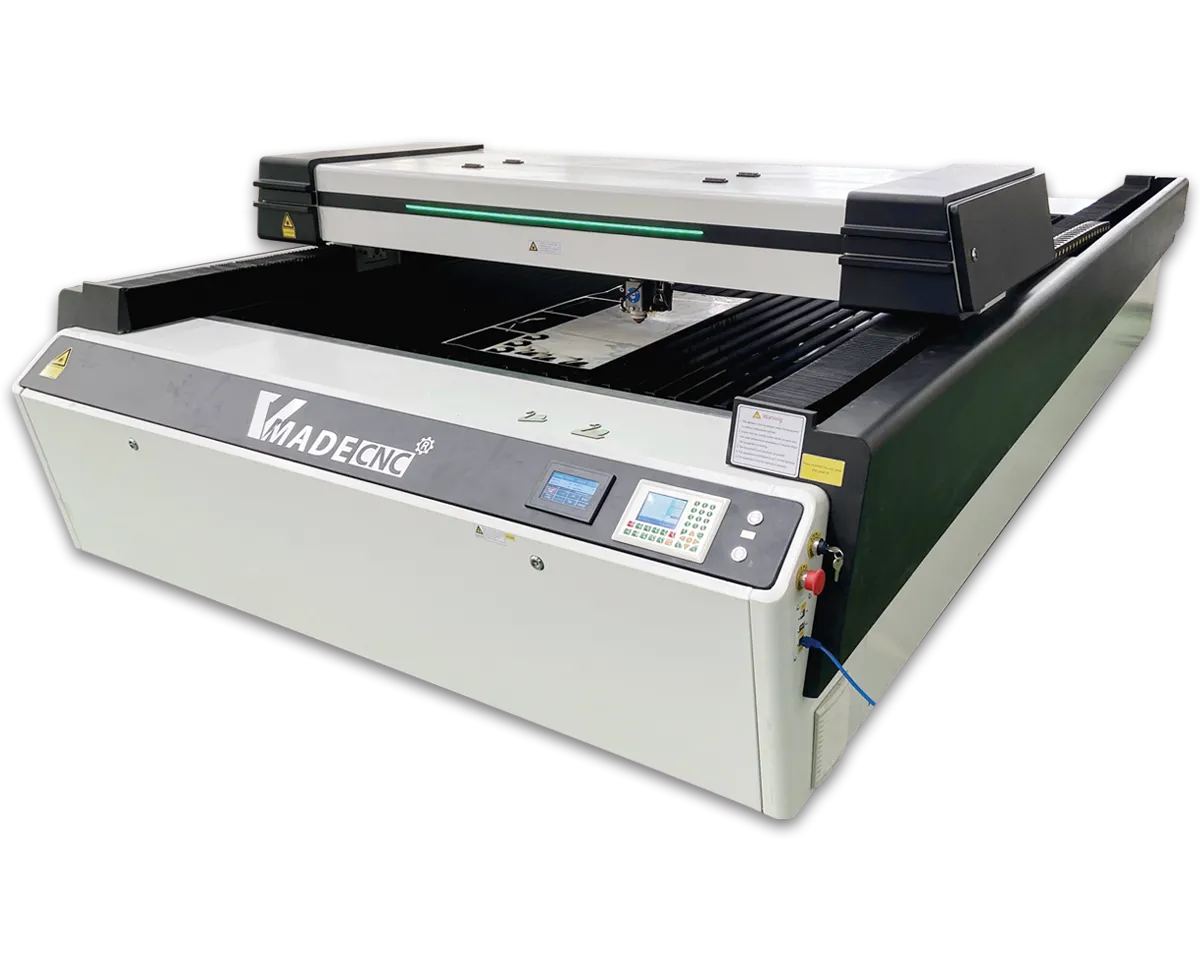

CO2 Hybird Cutting Machine

M Series

CO2 Hybird Cutting Machine

홈 페이지 / 제품 / CO2 레이저 절단기 / M 시리즈 / CO2 Hybird Cutting Machine

1) Fixed cabinet frame for rigidity.

2) Materials can extend through the front and rear doors to allow for a larger work product.

3) High precision equilibrium linear guide ensures the precise processing effect.

4) Adopt the super fine cutting technology, which has features of extensive material processing, smooth cutting edge.

5) Laminated Safety Glass.

6) Original Singapore imported lens with molybdenum base, making the equipment produce smaller spot and stronger cutting force.

7) Exhausting, absorbing and assistant blowing systems solve the problem that troubles the laser equipment manufacturing industry.

8) The laser cutter is equipped with aluminum strip shape platform.

9) This machine uses USB port to transmit data, it is equipped with large internal memory capacity.

10) Adopts high quality RECI, Yongli, SLW CO2 glass laser tube made in China.

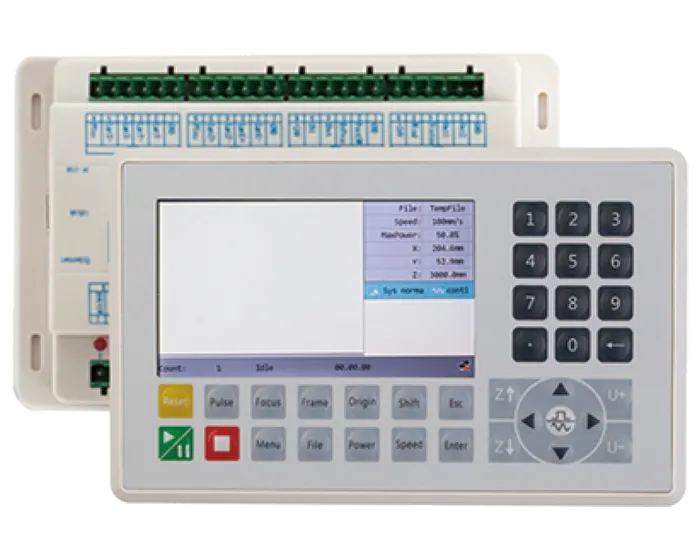

RD Control System

RD Control System

Smart control panel-RD Display work process clearly.

Professional control system, easy to operate

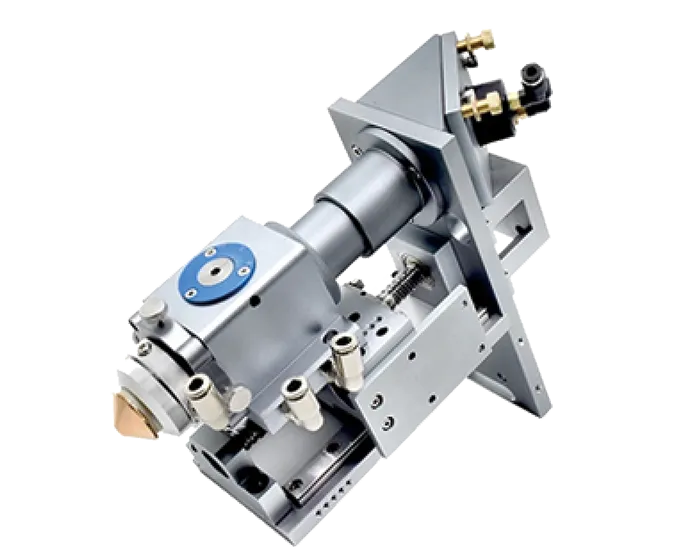

Autofus CO2 LASER HEAD (Metal Cutting)

Autofus CO2 LASER HEAD (Metal Cutting)

The laser head is able to cut both non-metals and steel. And it has autofocusing function when cutting steel which makes the cutting effect is perfect.

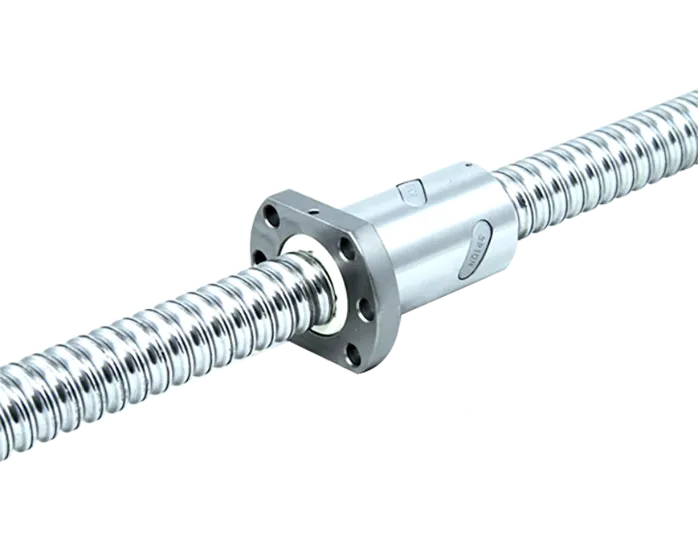

Adopted Taiwan TBI Ball Screw

Adopted Taiwan TBI Ball Screw

High movement efficiency, low heat, so it can achieve high-speed feed, high precision, excellent durability.

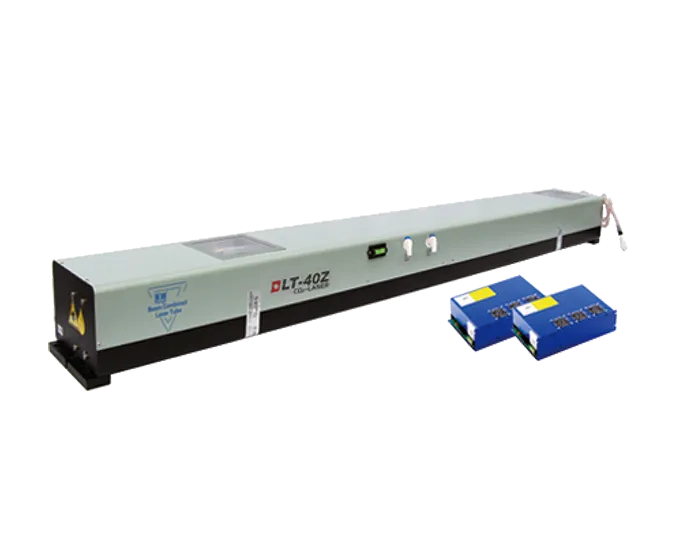

RECI Laser Tube

RECI Laser Tube

China top brand Yongli combined co2 laser tube with DLT-30(240W laser tube) or DLT-40(300W laser tube).

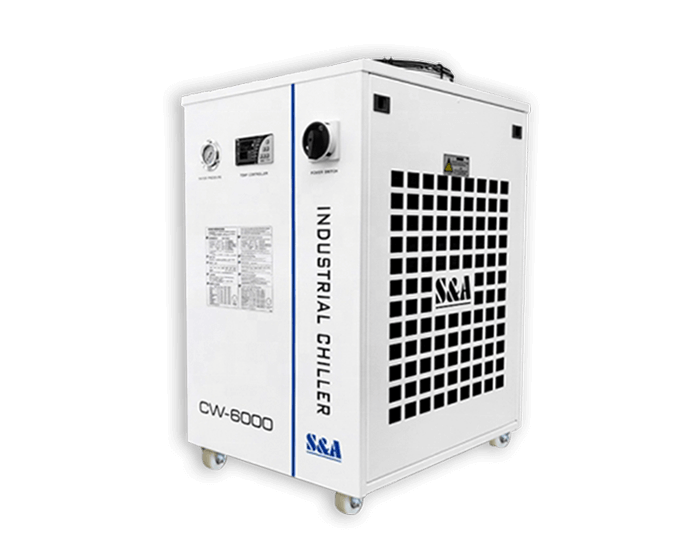

Water chiller

Water chiller

Industrial water chiller cools and protects the laser tube from high temperature, ensuring stable laser output and lasting laser tube lifetime. S&A CW-5200 for 150W / 180W laser tube, S&A CW-6000 for 220W / 300W laser tube.

기술적인 매개변수

Working Area1250 x 2500(mm)
Machine Size3600 x 1850 x 1300(mm)
Machine Size±0.05mm/m
Positioning Speed20m/min
Power Supply220V±10%/10A

응용 산업

The machine can satisfy the demands of cutting and engraving large quantity of clothing fabrics, leather, wood, acrylic, paper and other industries.
