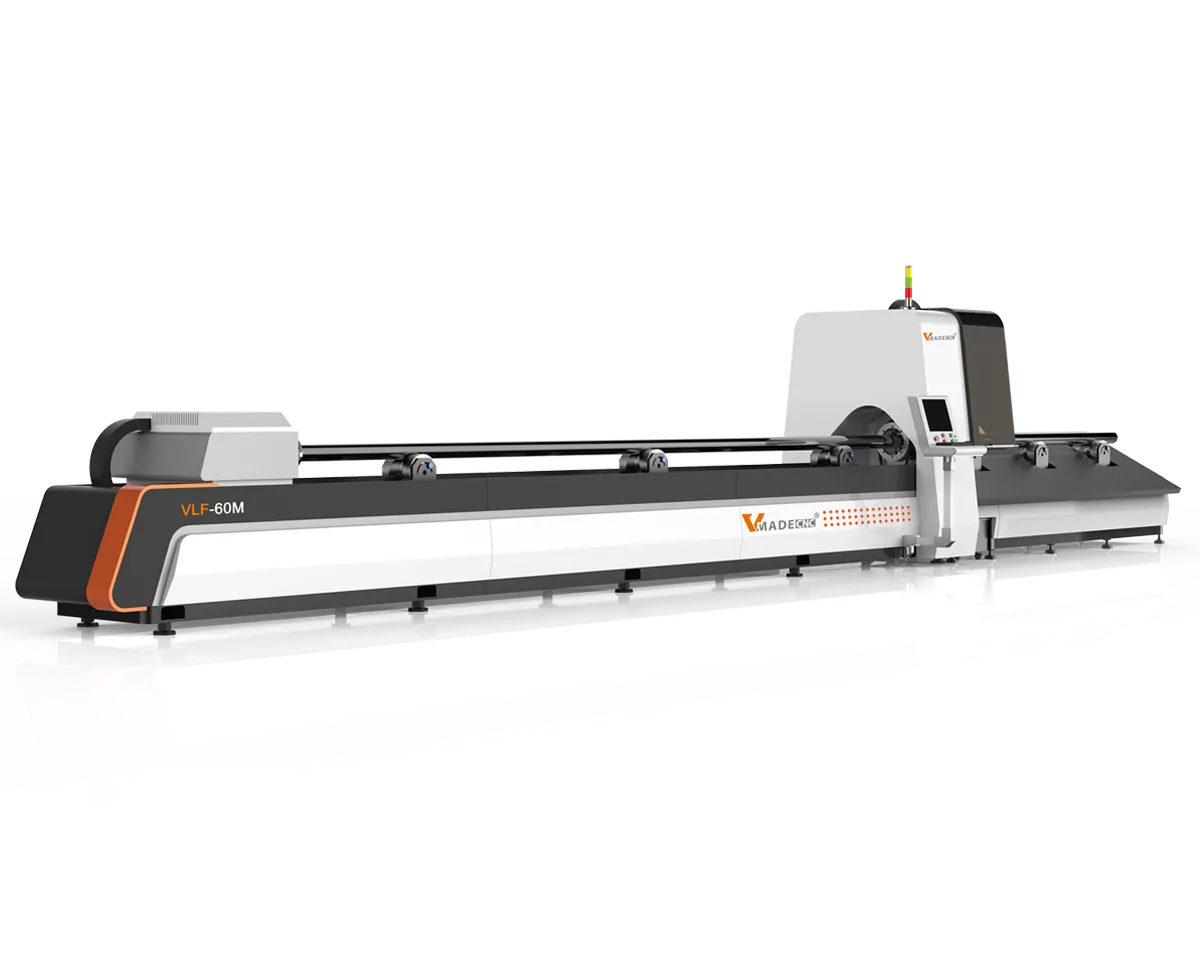

VLF60M Metal Pipe laser cutting machine is one new design professional for tube and pipe cutting, mainly used for cutting square tube, rectangular tube, oval tube, waist type tube, Dtube, Hexagonal tube. Tube Size: square tube 20*20mm~150*150mm, round tube 20-210mm, wall thickness of 0.5-10mm carbon steel tube, 0.5-10MM stainless steel(thickness is depends on the laser power)

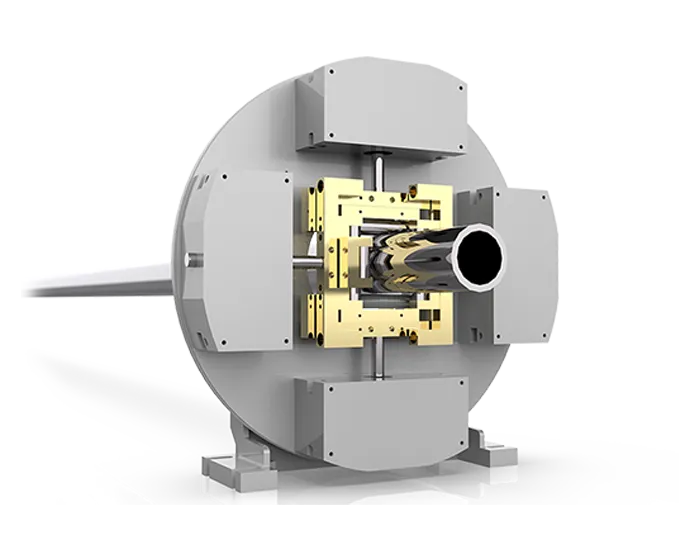

Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.

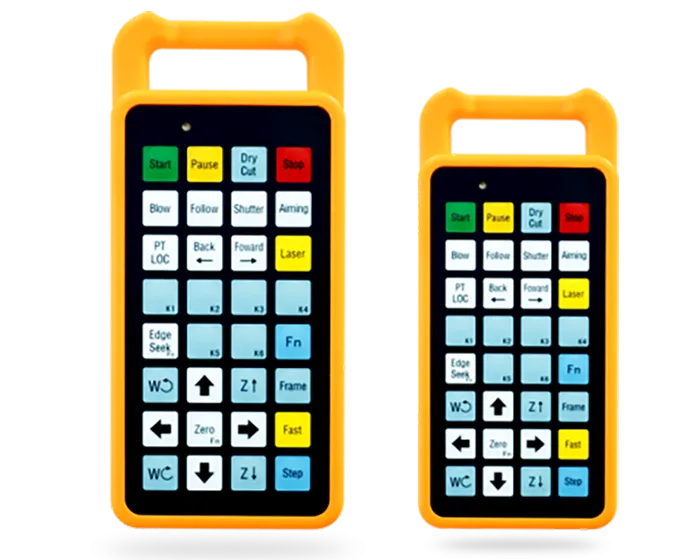

Easy to Operate
It employs a wireless controller, with free control clamp pressure for easy control and operation, which can reduce pipe deformation.

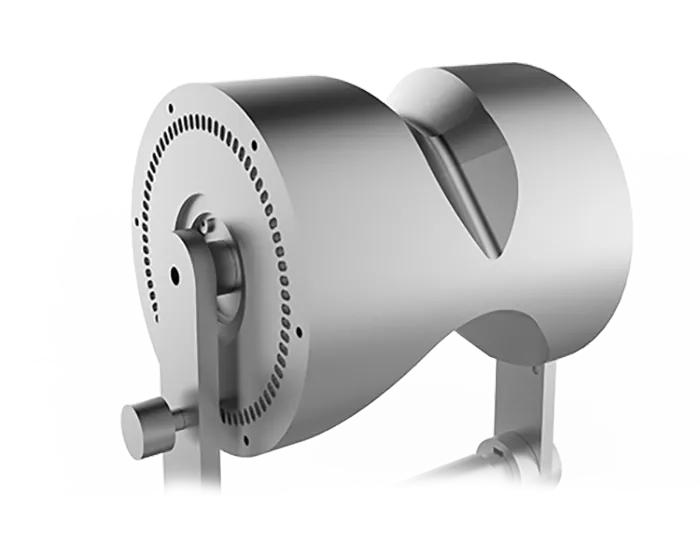

Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
기술적인 매개변수
| Machine model | 60M | 90M |
| Laser power | 1000W 2000W 3000W 4000W 6000W 8000W(Optional) | |
| Dimensions | 11900*1580*2260mm | 15700*1880*2630mm |
| Working area | Hold diameter: Φ20mm-Φ300mm | Φ10-Φ350mm |
| Repeat positioning accuracy | ±0.03mm | |
| Voltage and frequency | 380V 50Hz/60HZ | |

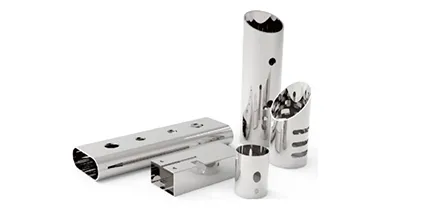

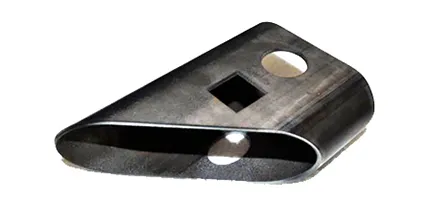

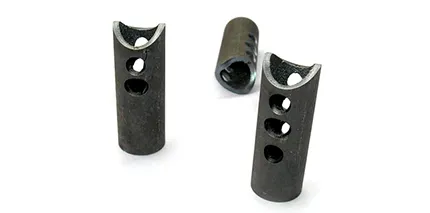

응용 산업
Take the oil industry for example, the main route of oil transport is the pipeline, and because of the characteristics of the oil itself, leading to the high quality requirements of the pipeline. While fiber laser cutting machine can achieve the pipes multi-angle precision processing to fulfil the oil transportation requirement.
Professional tube fiber laser cutting machine—LF60M is used for cutting square tube, rectangular tube, oval tube, waist type tube, hexagonal tube; square tube Φ20 * 20- Φ150 *150mm, round tube Φ20-Φ 210mm wall thickness of 0.5-10mm carbon steel tube, 0.5-10mm stainless steel tube.
